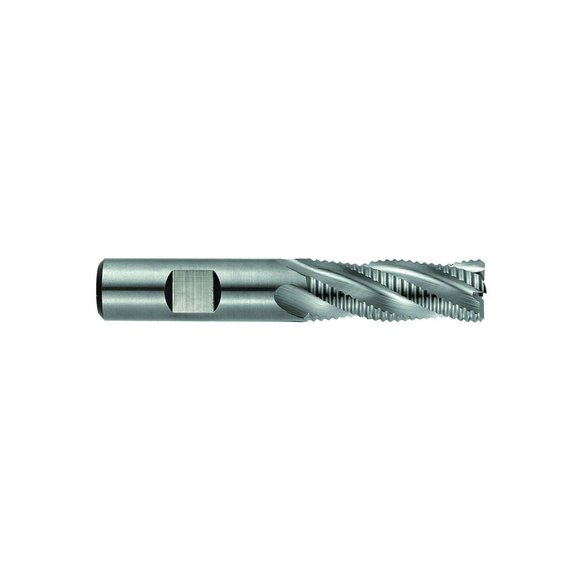

Niagara Cutter 17016297 REC448 Center Cutting Short Length Single End End Mill, 3/8 in Dia Cutter, 0.025 in Corner Radius, 3/4 in Length of Cut, 4 Flutes, 3/8 in Dia Shank, 2-1/2 in OAL, TiCN Coated
NIACUT 17016297
$56.35
/ EA
Out of Stock
- Mill Diameter: 3/8 in
- Mill Diameter - Decimal: 0.375 in
- Mill Diameter - Fractional: 3/8 in
- Mill Diameter - Metric: 9.525 mm
- Length of Cut: 3/4 in
- Shank Diameter: 3/8 in
- Shank Diameter - Decimal: 0.375 in
- Shank Diameter - Fractional: 3/8 in
- Shank Diameter - Metric: 9.525 mm
- End Type: Square End
- Material: HSS-Co8
- Finish/Coating: TiCN
- Overall Length: 2-1/2 in
- Centercutting: Center Cutting
- Helix Angle: 30 deg
- Center Cutting: Center-cutting
- Chamfer Width: 0.025 in
- Chipbreaker: No
- Corner Radius: 0.025 in
- Cutter Diameter: 3/8 in
- Cutter Diameter - Fractional: 3/8 in
- Cutting Direction: Right Hand
- Extended Reach: No
- Length of Cut - Decimal: 0.75 in
- Length of Cut - Fractional: 3/4 in
- Length of Cut - Metric: 19.05 mm
- Length Type: Regular
- Mill Diameter Tolerance: +0.003/-0.000 in
- Number of Flutes: 4
- Overall Length - Decimal: 2.5 in
- Overall Length - Fractional: 2-1/2 in
- Overall Length - Metric: 63.5 mm
- Part Number: N88498
- Series/List: REC448
- Shank Diameter Tolerance: -0.0001/-0.0005 in
- Single or Double End: Single End
- Variable Helix: No
- Flute Type: Spiral
- Shank Type: Weldon Flat
- Flute Direction: Right Hand
- Variable Index: No
EM 0.375 X 0.75 X 0.375 X 2.5 4 HSCO TIC
