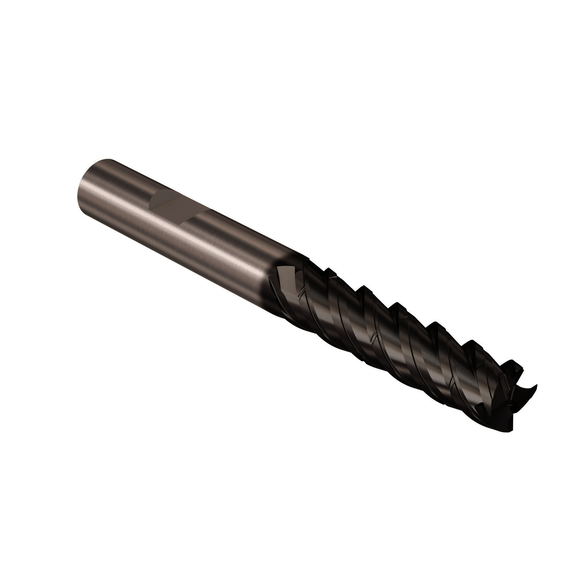

JABRO® Solid2 03067362 Solid2 JS564 Advanced Roughing Center Cutting Chamfered Corner Square Universal End Mill, 6 mm Dia Cutter, 23 mm Length of Cut, 4 Flutes, 6 mm Dia Shank, 64 mm OAL, NXT/PVD Coated
- Mill Diameter: 6 mm
- Mill Diameter - Metric: 6 mm
- Length of Cut: 23 mm
- Shank Diameter: 6 mm
- Shank Diameter - Decimal: 0.2362 in
- Shank Diameter - Metric: 6 mm
- End Type: Corner Chamfer
- Material: Carbide
- Finish/Coating: NXT
- Overall Length: 64 mm
- Centercutting: Center Cutting
- Helix Angle: 48 deg
- Cutter Diameter: 6 in
- Cutting Direction: Right Hand
- Flute Type: Spiral
- Length of Cut - Metric: 23 mm
- Overall Length - Metric: 64 mm
- Shank Type: Weldon Flat
- Number of Flutes: 4
Seco provides a range of dedicated solid carbide tools specifically engineered for advanced roughing strategies. Optimized cutting lengths, multi-flutes and chip splitter geometries offer maximized performance with modern tool path cycles where controlled arc of contact is a key prerequisite.
- Tapered core, chip splitters, differential pitch
For high speed applications on cast iron, non ferrous materials, plastics and other tough to machine materials
JABRO End Mill | Advanced Roughing Center Cutting Chamfered Corner Square Universal | Series: Solid2 JS564 | 6 mm Cutter Dia | 64 mm Overall Length | 6 mm | 23 mm Maximum Depth of Cut | 4 Flutes | Spiral Flute | 6 mm Shank Dia | Right Hand Cutting | 48 deg Helix Angle | Weldon Flat Shank | ANSI Code: JS564060D3C.3Z4C-NXT | Micrograin Solid Carbide | NXT/PVD Coated
