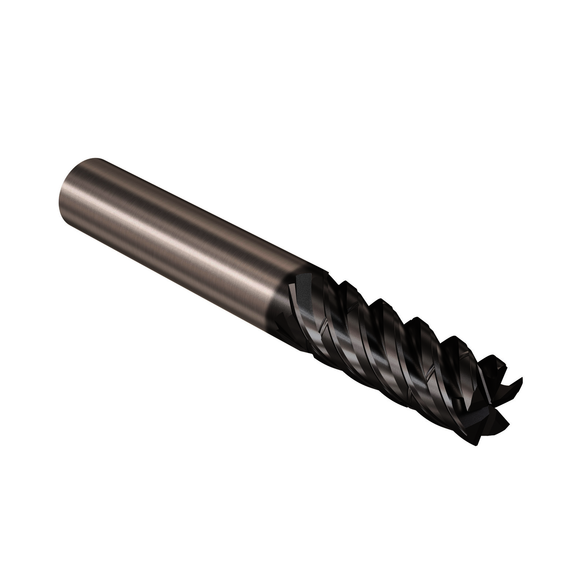

JABRO® Solid2 03067387 Solid2 JS565 Advanced Roughing Center Cutting Chamfered Corner Square Universal End Mill, 8 mm Dia Cutter, 32 mm Length of Cut, 5 Flutes, 8 mm Dia Shank, 74 mm OAL, NXT/PVD Coated
- Mill Diameter: 8 mm
- Mill Diameter - Metric: 8 mm
- Length of Cut: 32 mm
- Shank Diameter: 8 mm
- Shank Diameter - Decimal: 0.315 in
- Shank Diameter - Metric: 8 mm
- End Type: Corner Chamfer
- Material: Carbide
- Finish/Coating: NXT
- Overall Length: 74 mm
- Centercutting: No Center Cutting
- Helix Angle: 48 deg
- Cutter Diameter: 8 in
- Cutting Direction: Right Hand
- Length of Cut - Metric: 32 mm
- Number of Flutes: 5
- Overall Length - Metric: 74 mm
- Shank Type: Cylindrical
- Flute Type: Spiral
Seco provides a range of dedicated solid carbide tools specifically engineered for advanced roughing strategies. Optimized cutting lengths, multi-flutes and chip splitter geometries offer maximized performance with modern tool path cycles where controlled arc of contact is a key prerequisite.
- Tapered core, chip splitters, differential pitch
For high speed applications on cast iron, non ferrous materials, plastics and other tough to machine materials
JABRO End Mill | Advanced Roughing Center Cutting Chamfered Corner Square Universal | Series: Solid2 JS565 | 8 mm Cutter Dia | 74 mm Overall Length | 8 mm | 32 mm Maximum Depth of Cut | 5 Flutes | Spiral Flute | 8 mm Shank Dia | Right Hand Cutting | 48 deg Helix Angle | Cylindrical Shank | ANSI Code: JS565080D3C.0Z5C-NXT | Micrograin Solid Carbide | NXT/PVD Coated
