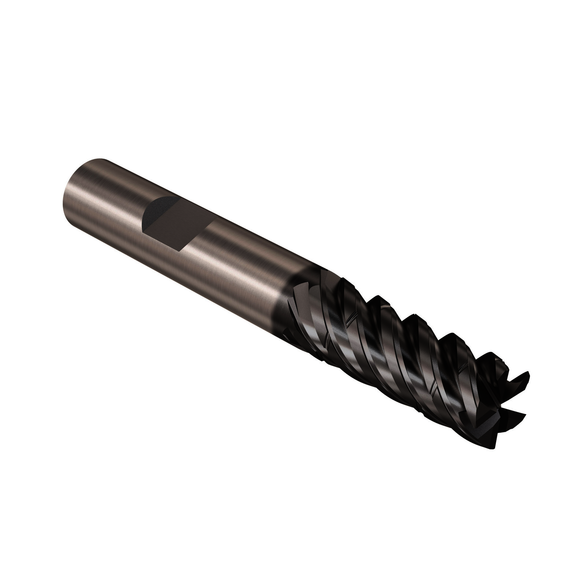

JABRO® Solid2 03067407 Solid2 JS565 Advanced Roughing Center Cutting Chamfered Corner Square Universal End Mill, 12 mm Dia Cutter, 30 mm Length of Cut, 5 Flutes, 12 mm Dia Shank, 83 mm OAL, NXT/PVD Coated
- Mill Diameter: 12 mm
- Mill Diameter - Metric: 12 mm
- Length of Cut: 30 mm
- Shank Diameter: 12 mm
- Shank Diameter - Decimal: 0.4724 in
- Shank Diameter - Metric: 12 mm
- End Type: Corner Chamfer
- Material: Carbide
- Finish/Coating: NXT
- Overall Length: 83 mm
- Centercutting: No Center Cutting
- Helix Angle: 48 deg
- Cutter Diameter: 12 mm
- Cutter Diameter - Metric: 12 mm
- Cutting Direction: Right Hand
- Length of Cut - Metric: 30 mm
- Number of Flutes: 5
- Overall Length - Metric: 83 mm
- Shank Type: Weldon Flat
- Flute Type: Spiral
Seco provides a range of dedicated solid carbide tools specifically engineered for advanced roughing strategies. Optimized cutting lengths, multi-flutes and chip splitter geometries offer maximized performance with modern tool path cycles where controlled arc of contact is a key prerequisite.
- Tapered core, chip splitters, differential pitch
For high speed applications on cast iron, non ferrous materials, plastics and other tough to machine materials
JABRO End Mill | Advanced Roughing Center Cutting Chamfered Corner Square Universal | Series: Solid2 JS565 | 12 mm Cutter Dia | 83 mm Overall Length | 12 mm | 30 mm Maximum Depth of Cut | 5 Flutes | Spiral Flute | 12 mm Shank Dia | Right Hand Cutting | 48 deg Helix Angle | Weldon Flat Shank | ANSI Code: JS565120D2C.3Z5C-NXT | Micrograin Solid Carbide | NXT/PVD Coated
