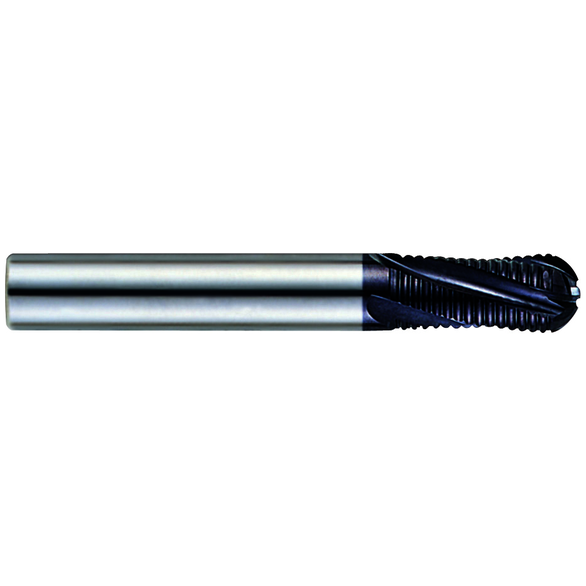

YG-1 93265 EM662 X-POWER Ball Nose Regular Length Rougher High Performance End Mill, 3/8 in Dia Cutter, 7/8 in Length of Cut, 3 Flutes, 3/8 in Dia Shank, 2-1/2 in OAL, TiAlN Coated
YG1 93265
$83.56
/ EA
Out of Stock
- Mill Diameter: 3/8 in
- Mill Diameter - Decimal: 0.375 in
- Mill Diameter - Fractional: 3/8 in
- Mill Diameter - Metric: 9.525 mm
- Pitch: Fine
- Length of Cut: 7/8 in
- Shank Diameter: 3/8 in
- Shank Diameter - Decimal: 0.375 in
- Shank Diameter - Fractional: 3/8 in
- Shank Diameter - Metric: 9.525 mm
- End Type: Ball Nose
- Material: Carbide
- Finish/Coating: Bright / Uncoated
- Overall Length: 2-1/2 in
- Centercutting: Center Cutting
- Helix Angle: 20 deg
- Coolant Through: No
- Cutting Direction: Right Hand
- Flute Type: Rougher
- Length of Cut - Decimal: 0.875 in
- Length of Cut - Fractional: 7/8 in
- Length of Cut - Metric: 22.23 mm
- Number of Flutes: 3
- Overall Length - Decimal: 2.5 in
- Overall Length - Fractional: 2-1/2 in
- Overall Length - Metric: 63.5 mm
- Single or Double End: Single End
- Flute Direction: Right Hand
Features and Benefits:
Designed to machine tool steel, alloy steel, mold steel and other high hardened materials.
High velocity milling of hardened steels.
For dry and wet milling.
Fast chip ejection.
Designed to machine tool steel, alloy steel, mold steel and other high hardened materials.
High velocity milling of hardened steels.
For dry and wet milling.
Fast chip ejection.
