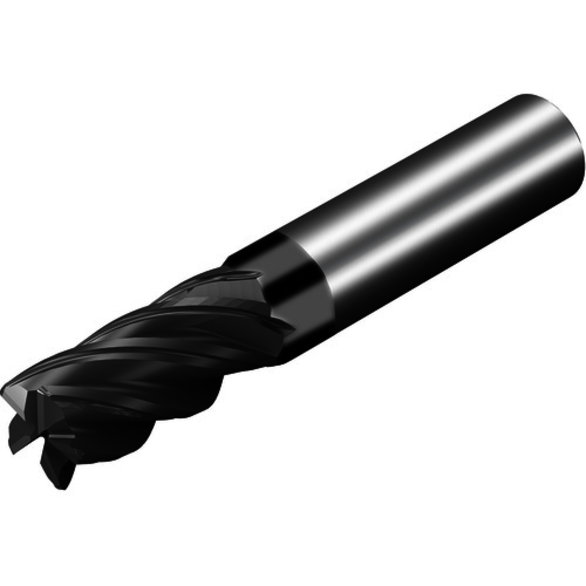

Dura-Mill 8036765 in Milling Dia, in LOC, in OAL, Flutes, , , Square End Mills
DURMIL 8036765
$55.40
/ EA
Out of Stock
- Centercutting: Center Cutting
- Mill Diameter: 0.25 in
- Mill Diameter - Decimal: 0.25 in
- Mill Diameter - Fractional: 1/4 in
- Mill Diameter - Metric: 6.35 mm
- Number of Flutes: 5
- Length of Cut: 0.75 in
- Material: Carbide
- Finish/Coating: AlTiN
- Shank Diameter: 0.25 in
- Shank Diameter - Decimal: 0.25 in
- Shank Diameter - Fractional: 1/4 in
- Shank Diameter - Metric: 6.35 mm
- Single or Double End: Single End
- Overall Length: 2.5 in
- Flute Direction: Right Hand
- Cutting Direction: Right Hand
- Helix Angle: Variable
- Center Cutting: Yes
- Chipbreaker: No
- Diameter: 0.197 in
- Diameter - Decimal: 0.197 in
- Diameter - Fractional: 1/4 in
- Diameter - Metric: 6.35 mm
- Extended Reach: No
- Length of Cut - Decimal: 0.75 in
- Length of Cut - Fractional: 3/4 in
- Length of Cut - Metric: 19.05 mm
- Material Grade: Micrograin
- Mill Diameter Tolerance: +0.000/-0.002 in
- Overall Length - Decimal: 2.5 in
- Overall Length - Fractional: 2-1/2 in
- Part Number: 8036765
- Shank Diameter Tolerance: -0.0001/-0.0004 in
- Type: Center Cutting
- Flute Type: Spiral
- Variable Index: No
EM 1/4X3/4X2-1/2 5F SC AT
