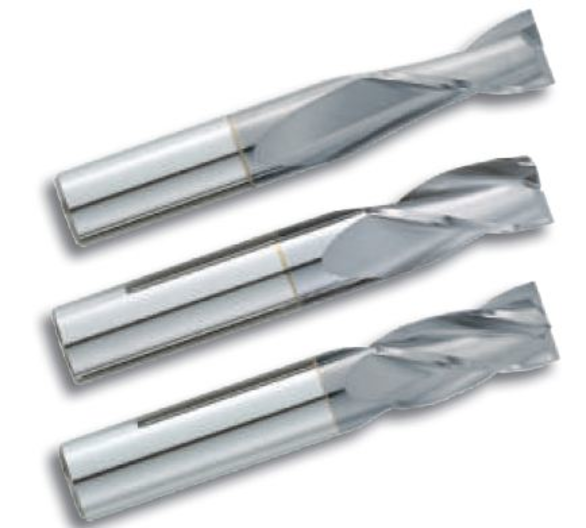

GARR 13344 230MC Center Cutting Square End Standard Length End Mill, 11/16 in Dia Cutter, 1-1/2 in Length of Cut, 4 Flutes, 3/4 in Dia Shank, 4 in OAL, TiCN Coated
GARR 13344
$131.70
/ EA
Out of Stock
- Centercutting: Center Cutting
- Mill Diameter: 11/16 in
- Mill Diameter - Fractional: 11/16 in
- Number of Flutes: 4
- Length of Cut: 1.5 in
- Material: Solid Carbide
- Finish/Coating: TiCN
- Shank Diameter: 0.75 in
- Shank Diameter - Decimal: 0.75 in
- Shank Diameter - Fractional: 3/4 in
- Single or Double End: Single End
- Overall Length: 4 in
- Flute Direction: Right Hand
- Cutting Direction: Right Hand
- Helix Angle: 30 deg
- Coolant Through: No
- Cutting Diameter: 11/16 in
- Cutting Diameter - Fractional: 11/16 in
- Diameter: 11/16 in
- Diameter - Decimal: 0.6875 in
- Diameter - Fractional: 11/16 in
- Diameter - Metric: 17.46 mm
- End Type: Square End
- Flat: No
- Length of Cut - Fractional: 1-1/2 in
- Overall Length - Decimal: 4 in
- Series: 45
- Tool Type: EM
- Type: Center Cutting
- Weight: 0.73 kg
- Finish: TiCN
- 30 degree helix - rhs/rhc
- For improved lubricity and abrasion resistance
- Up to 25% faster than uncoated
