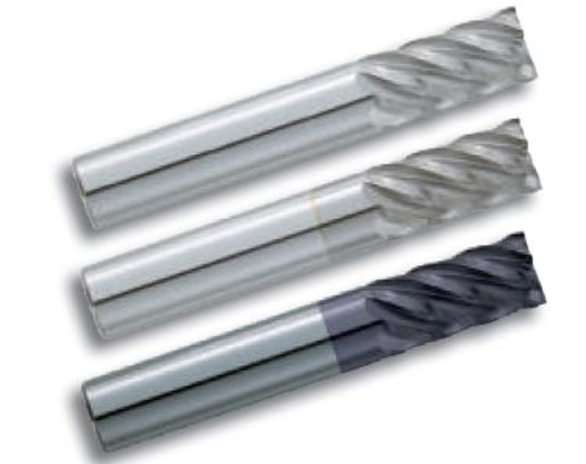

GARR 51197 246MA Center Cutting Square End High Performance End Mill, 5/16 in Dia Cutter, 7/8 in Length of Cut, 6 Flutes, 5/16 in Dia Shank, 2-1/2 in OAL, TiALN Coated
GARR 51197
$26.89
/ EA
Out of Stock
- Centercutting: Center Cutting
- Mill Diameter: 0.3125 in
- Mill Diameter - Decimal: 0.3125 in
- Number of Flutes: 6
- Length of Cut: 0.875 in
- Material: Carbide
- Finish/Coating: AlTiN
- Shank Diameter: 0.3125 in
- Shank Diameter - Decimal: 0.3125 in
- Shank Diameter - Fractional: 5/16 in
- Single or Double End: Single End
- Overall Length: 2.5 in
- Flute Direction: Right Hand
- Cutting Direction: Right Hand
- Helix Angle: 40 deg
- Coating: AlTiN
- Coolant Through: No
- Cutting Diameter: 5/16 in
- Cutting Diameter - Fractional: 5/16 in
- Diameter: 5/16 in
- Diameter - Decimal: 0.3125 in
- Diameter - Fractional: 5/16 in
- End Type: Square End
- Flat: No
- Length of Cut - Fractional: 7/8 in
- Overall Length - Decimal: 2.5 in
- Overall Length - Fractional: 2-1/2 in
- Series: 27
- Tool Type: EM
- Weight: 0.08 kg
- Type: Center Cutting
- Diameter - Metric: 7.937 mm
- Finish: TiAlN
- High performance finishing tool in a variety of steels
- Rigid work holding, machine stability and part integrity are critical
- Dry or semi-dry machining
- Up to 40% faster than uncoated
- Excellent durability
