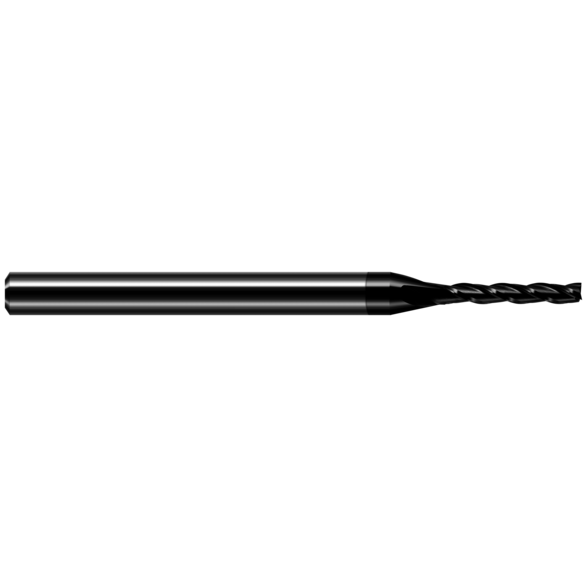

Harvey Tool 31831-C4 Center Cut Imperial Long Length Miniature Square End Mill, 1/32 in Dia Cutter, 0.156 in Length of Cut, 3 Flutes, 1/8 in Dia Shank, 2-1/2 in OAL, Amorphous Diamond Coated
HARVEY 31831-C4
$61.11
/ EA
Out of Stock
- Centercutting: Center Cutting
- Mill Diameter: 0.031 in
- Mill Diameter - Decimal: 0.031 in
- Mill Diameter - Fractional: 1/32 in
- Number of Flutes: 3
- Length of Cut: 0.156 in
- Material: Carbide
- Finish/Coating: Amorphous Diamond
- Shank Diameter: 0.125 in
- Shank Diameter - Decimal: 0.125 in
- Shank Diameter - Fractional: 1/8 in
- Shank Diameter - Metric: 3.175 mm
- Single or Double End: Single End
- Overall Length: 2.5 in
- Flute Direction: Right Hand
- Cutting Direction: Right Hand
- Helix Angle: 30 deg
- Coolant Through: No
- Diameter - Decimal: 0.031 in
- Diameter - Metric: 0.787 mm
- Extended Reach: No
- Finish: Amorphous Diamond
- Length of Cut - Fractional: 5/32 in
- Overall Length - Fractional: 2-1/2 in
- Overall Reach: 0.156 in
- Type: Miniature
- Ground from solid carbide in the USA, the long length of this tool is designed for deep cavity machining operations.
