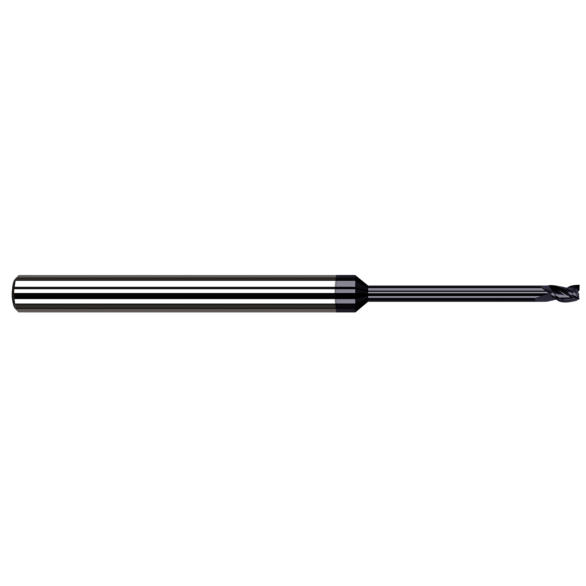

Harvey Tool 35505-C3 Center Cut Stub Length Miniature End Mill, 0.118 in Dia Cutter, 0.177 in Length of Cut, (3) Flutes, 1/8 in Dia Shank, 3 in OAL, AlTiN
HARVEY 35505-C3
$62.12
/ EA
Out of Stock
- Centercutting: Center Cutting
- Mill Diameter: 3 mm
- Mill Diameter - Decimal: 0.118 in
- Mill Diameter - Metric: 3 mm
- Number of Flutes: 3
- Length of Cut: 0.177 in
- Material: Carbide
- Finish/Coating: AlTiN
- Shank Diameter: 0.125 in
- Shank Diameter - Decimal: 0.125 in
- Shank Diameter - Fractional: 1/8 in
- Shank Diameter - Metric: 3.175 mm
- Single or Double End: Single End
- Overall Length: 3 in
- Flute Direction: Right Hand
- Cutting Direction: Right Hand
- Helix Angle: 30 deg
- Coolant Through: No
- Diameter - Decimal: 0.118 in
- Diameter - Metric: 2.997 mm
- Extended Reach: Yes
- Finish: AlTiN
- Flute Type: Stub
- Length Type: Long Reach Length
- Overall Reach: 1.42 in
- Type: Miniature
- Ground from solid carbide in the USA, the long length of this tool is designed for deep cavity machining operations.
