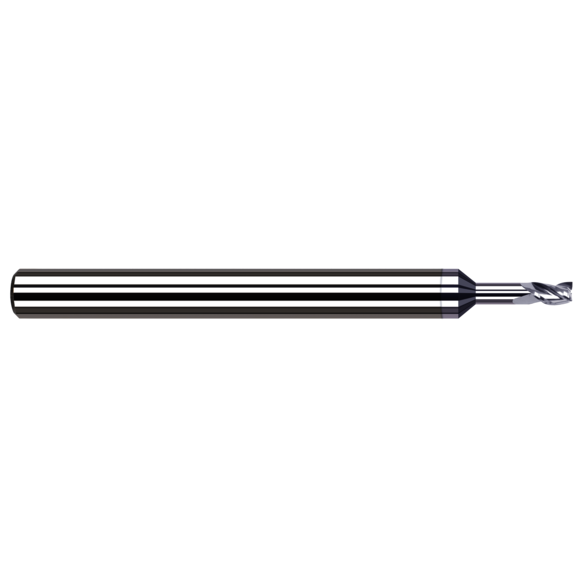

HARVEY 814362-C8 3 FL - 0.0620" (1/16) Cutter DIA x 0.0930" (3/32) LOC x 0.2500" (1/4) Reach - TiB2 Coated
HARVEY 814362-C8
$100.04
/ EA
Out of Stock
- Centercutting: Center Cutting
- Mill Diameter: 0.062 in
- Mill Diameter - Decimal: 0.062 in
- Mill Diameter - Fractional: 1/16 in
- Number of Flutes: 3
- Length of Cut: 0.093 in
- Material: Carbide
- Finish/Coating: TiB2
- Shank Diameter: 0.125 in
- Shank Diameter - Decimal: 0.125 in
- Shank Diameter - Fractional: 1/8 in
- Single or Double End: Single End
- Overall Length: 2.5 in
- Flute Direction: Right Hand
- Cutting Direction: Right Hand
- Helix Angle: 42 deg
- Center Cutting: No
- Chipbreaker: No
- Coolant Through: No
- Cutter Diameter: 1/16 in
- Cutter Diameter - Fractional: 1/16 in
- Extended Reach: Yes
- Flute Length x Diameter Ratio: (1.5x)
- Length of Cut - Fractional: 3/32 in
- Neck Diameter: 0.0605 in
- Overall Length - Decimal: 2.5 in
- Overall Length - Fractional: 2-1/2 in
- Overall Reach: 0.25 in
- Overall Reach - Fractional: 1/4 in
- Weldon Flat: No
EM 0.062X3/32X1/8X2-1/2 3F SQ CARBIDE
