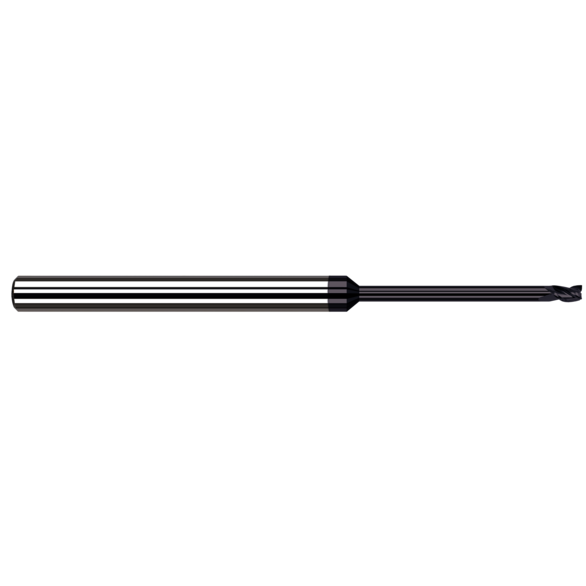

Harvey Tool 839408-C3 Center Cut Stub Length Miniature End Mill, 0.125 in Dia Cutter, 3/16 in Length of Cut, (3) Flutes, 1/8 in Dia Shank, 3 in OAL, AlTiN
HARVEY 839408-C3
$98.91
/ EA
Out of Stock
- Centercutting: Center Cutting
- Mill Diameter: 0.125 in
- Mill Diameter - Decimal: 0.125 in
- Mill Diameter - Fractional: 1/8 in
- Number of Flutes: 3
- Length of Cut: 0.187 in
- Material: Carbide
- Finish/Coating: AlTiN
- Shank Diameter: 0.125 in
- Shank Diameter - Decimal: 0.125 in
- Shank Diameter - Fractional: 1/8 in
- Single or Double End: Single End
- Overall Length: 3 in
- Flute Direction: Right Hand
- Cutting Direction: Right Hand
- Helix Angle: 30 deg
- Center Cutting: No
- Chipbreaker: No
- Coolant Through: No
- Cutter Diameter: 1/8 in
- Cutter Diameter - Fractional: 1/8 in
- Extended Reach: Yes
- Flute Length x Diameter Ratio: (1.5x)
- Length of Cut - Fractional: 3/16 in
- Neck Diameter: 0.121 in
- Overall Length - Decimal: 3 in
- Overall Reach: 1.625 in
- Overall Reach - Fractional: 1-5/8 in
- Weldon Flat: No
EM 0.125X3/16X1/8X3 3F SQ CARBIDE ALTIN
