Ingersoll Cutting Tools

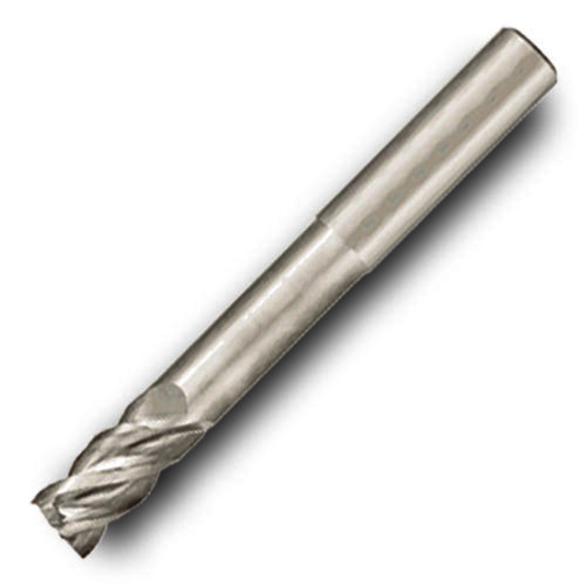

INGCUT 5623349 IN05S Solid Carbide 12 MM Dia End Mill

INGCUT 5623349
$112.00 / EA
INGCUT 5623349 IN05S Solid Carbide 12 MM Dia End Mill
  • Material: Solid Carbide
  • Shank Diameter - Decimal: 0.47244 in
  • Shank Diameter - Metric: 12 mm
  • Overall Length: 83 mm
  • Helix Angle: 39 Degree;41 Degree
  • Cutter Pitch: Unequal
  • Diameter - Decimal: 0.47244 in
  • Grade: IN05S
  • Pitch: Variable
  • Radius: 0.2 mm
  • Reach Length: 36.00 mm
  • Series: 47D_RQ
  • Shank Type: Cylindrical
  • Diameter - Metric: 12 mm
  • Ø6-25 mm (Cylindrical)
  • 4 Flute, 39-41° Helix
  • Variable Pitch, Variable Helix
  • Aluminum Applications

Standard/Approvals:IN05S

Applications:

  • Shoulder
  • Channeling
  • Ramping
  • Helical/Corkscrew

    • Ingersoll Cutting Tools 5623349 | Number of Flutes 4 | Solid Carbide | Square End Mill
