Ingersoll Cutting Tools

INGCUT 5623409 IN2003 Solid Carbide 0.375 Dia End Mill

INGCUT 5623409
$131.00 / EA

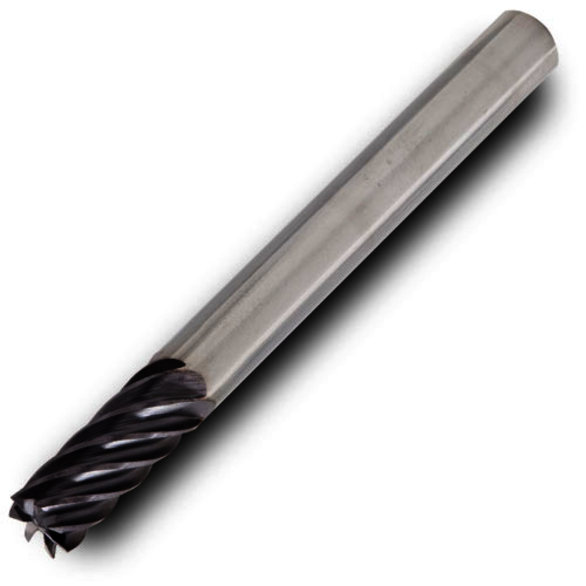

INGCUT 5623409 IN2003 Solid Carbide 0.375 Dia End Mill
  • Material: Solid Carbide
  • Shank Diameter - Decimal: Cylindrical .375"
  • Shank Diameter - Fractional: 3/8 in
  • Shank Diameter - Metric: 9.525 mm
  • Overall Length: 3 in
  • Helix Angle: 35 Degree
  • Chamfer Angle: 45 Degree
  • Cutter Pitch: Unequal
  • Grade: IN2003
  • Pitch: Variable
  • Radius: 0.007 in
  • Series: 48/49C_RQ
  • Shank Type: Cylindrical
  • Diameter - Fractional: 3/8 in
  • Diameter - Decimal: 0.375 in
  • Diameter - Metric: 9.525 mm
  • Ø.250-.750" (Cylindrical)
  • 6 to 20 Flute, 35° or 45° Helix
  • Variable Pitch, Variable Helix

Standard/Approvals:IN2003

Applications:

  • Shoulder
  • Ramping
  • Helical/Corkscrew

    • Ingersoll Cutting Tools 5623409 | Number of Flutes 10 | Solid Carbide | Square End Mill
