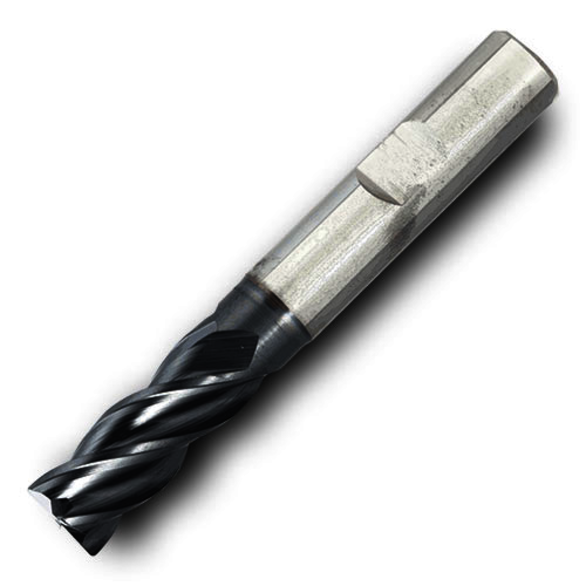

INGCUT 5667178 IN2005 0.375 Dia 4 F 3 OAL End Mill

INGCUT 5667178
$100.00 / EA
INGCUT 5667178 IN2005 0.375 Dia 4 F 3 OAL End Mill
  • Material: Solid Carbide
  • Shank Diameter - Decimal: Weldon .375"
  • Shank Diameter - Fractional: 3/8 in
  • Shank Diameter - Metric: 9.525 mm
  • Overall Length: 3 in
  • Helix Angle: 35 Degree;37 Degree
  • Cutter Pitch: Unequal
  • Edge Type: Chamfered Cutting Edge
  • Grade: IN2005
  • Pitch: Variable
  • Radius: 0.02 in
  • Series: 47D_RX
  • Shank Type: Weldon Flat
  • Diameter - Fractional: 3/8 in
  • Diameter - Decimal: 0.375 in
  • Diameter - Metric: 9.525 mm
  • Ø.250-.750" (Cylindrical or Weldon)
  • 4 Flute, 35-37° Helix
  • Variable helix, variable pitch
  • Radial relief grind

Standard/Approvals:IN2005

Applications:

  • Shoulder
  • Channeling
  • Ramping
  • Helical/Corkscrew
  • Coolant-Thru

    • Ingersoll Cutting Tools 5667178 | Number of Flutes 4 | Solid Carbide | Square End Mill
