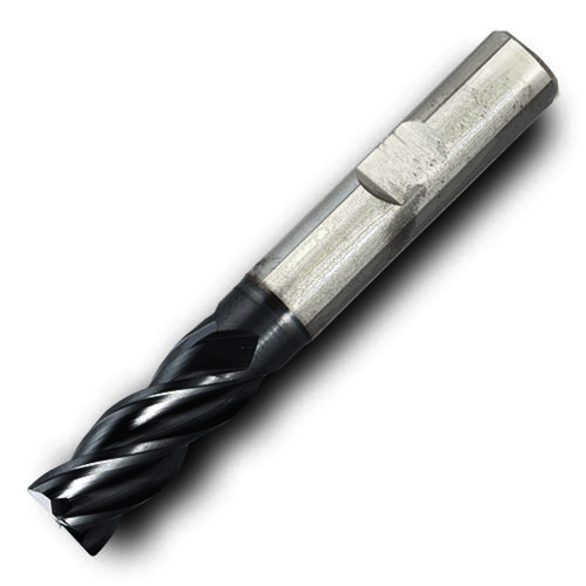

INGCUT 5667179 IN2005 0.5 Dia 4 F 3 OAL End Mill
INGCUT 5667179
$141.00
/ EA
- Material: Solid Carbide
- Shank Diameter: 1/2 in
- Shank Diameter - Decimal: 0.5 in
- Shank Diameter - Fractional: 1/2 in
- Shank Diameter - Metric: 12.7 mm
- Overall Length: 3 in
- Helix Angle: 35 deg;37 deg
- Cutter Pitch: Unequal
- Diameter: 0.197 in
- Diameter - Decimal: 0.197 in
- Diameter - Fractional: 1/2 in
- Edge Type: Chamfered Cutting Edge
- Grade: IN2005
- Overall Length - Decimal: 3 in
- Pitch: Variable
- Radius: 0.023 in
- Series: 47D_RX
- Shank Type: Cylindrical
- Diameter - Metric: 12.7 mm
- Ø.250-.750" (Cylindrical or Weldon)
- 4 Flute, 35-37° Helix
- Variable helix, variable pitch
- Radial relief grind
Standard/Approvals:IN2005
Applications:
Ingersoll Cutting Tools 5667179 | Number of Flutes 4 | Solid Carbide | Square End Mill
