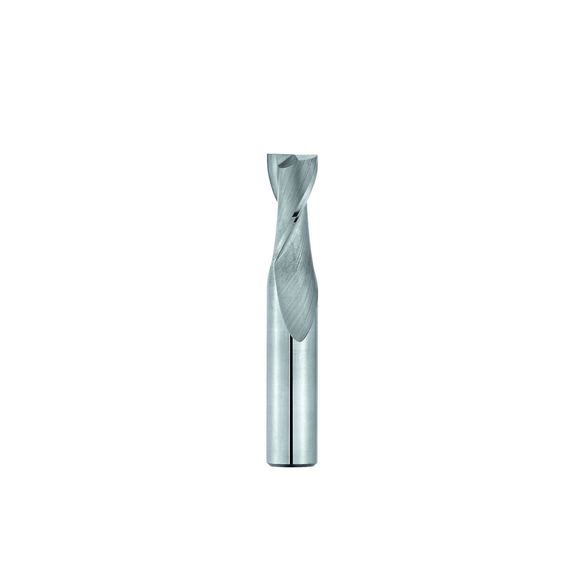

Niagara Cutter 17005254 C230 Center Cutting Long Length Single End Square End End Mill, 5/8 in Dia Cutter, 2-1/4 in Length of Cut, 2 Flutes, 5/8 in Dia Shank, 5 in OAL, Uncoated

• Solid carbide provides better rigidity than high speed steel, it is extremely heat resistant and used for high speed applications on cast iron, non-ferrous materials, plastics and other tough-to-machine materials
• Uncoated tools do not feature supportive treatments on the cutting edge, they are used at reduced speeds for general applications on non-ferrous metals
• 90 deg cutting edge
• 1.906 in L minimum clamping
• 30 deg axial rake
• 10 deg radial rake
• Square nose end mills create sharp, unrounded cuts
• Two flutes offer better chip-carrying capacity than end mills with more flutes, enhancing the tool's ability to remove material
• Center cutting design allows the end mill to plunge into material like a drill bit while also performing conventional surface milling
• D - Cylindrical tool shape

For general machining of most materials

Niagara Cutter End Mill | Center Cutting Long Length Single End Square End | Series: C230 | 5/8 in Cutter Dia | 5 in Overall Length | 5/8 in | 2-1/4 in Maximum Depth of Cut | 2 Flutes | Spiral Flute | 5/8 in Shank Dia | Right Hand Cutting | 30 deg Helix Angle | Cylindrical Shank | ANSI Code: C230-0.625-D4-S.0-Z2 | ISO Code: C230.625D4S.0Z2 | Solid Carbide | Uncoated
