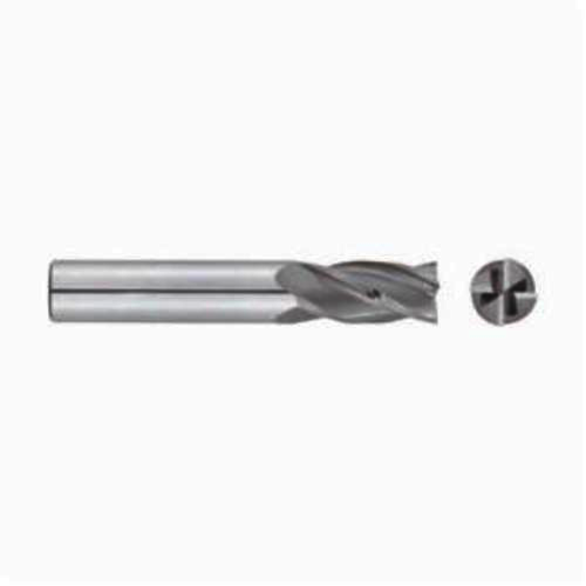

Niagara Cutter N85516 C430 Center Cutting Single End Medium Length Square End End Mill, 7/32 in, 5/8 in Max Depth of Cut, 4 Flutes, 1/4 in Shank, 2-1/2 in OAL
NIACUT 17005309
$19.84
/ EA
- Material: Solid Carbide
- Shank Diameter - Decimal: 0.25 in
- Shank Diameter - Fractional: 1/4 in
- Shank Diameter - Metric: 6.35 mm
- Overall Length: 2-1/2 in
- Helix Angle: 30 deg
- Arbor/Shank Size: 1/4 in
- Cutter Diameter - Fractional: 7/32 in
- Length Type: Medium Length
- Series: C430
- Shank Type: Cylindrical
- Type: Center Cutting
- Flute Type: Spiral
- Cutter Diameter - Decimal: 0.21875 in
- Cutter Diameter - Metric: 5.556 mm
- Finish: Uncoated
- Solid carbide provides better rigidity than high speed steel, it is extremely heat resistant and used for high speed applications on cast iron, non-ferrous materials, plastics and other tough-to-machine materials
- Uncoated tools do not feature supportive treatments on the cutting edge, they are used at reduced speeds for general applications on non-ferrous metals
- 90 deg cutting edge
- 30 deg axial rake
- 10 deg radial rake
- 10 deg neck
- F - Step tool shape
General Purpose Applications
Niagara Cutter End Mill | Center Cutting Single End Medium Length Square End | Series: C430 | 7/32 in Cutter Dia | 2-1/2 in Overall Length | 1/4 in | 5/8 in Maximum Depth of Cut | 4 Flutes | Spiral Flute | 1/4 in Shank Dia | Right Hand Cutting | 30 deg Helix Angle | Cylindrical Shank | ANSI Code: C430-0.219-F3-S.0-Z4 | ISO Code: C430.219F3S.0Z4 | Solid Carbide | Uncoated
