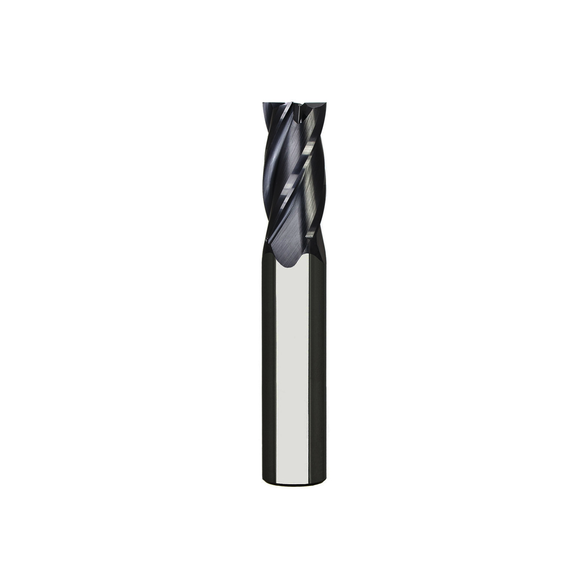

Niagara Cutter 17005384 C430 Center Cutting Single End Medium Length Square End End Mill, 13/64 in Dia Cutter, 5/8 in Length of Cut, 4 Flutes, 1/4 in Dia Shank, 2-1/2 in OAL, TiAlN Coated
NIACUT 17005384
$21.23
/ EA
Out of Stock
- Mill Diameter: 13/64 in
- Number of Flutes: 4
- Length of Cut: 5/8 in
- Material: Solid Carbide
- Finish/Coating: TiAlN Coated
- Shank Diameter: 1/4 in
- Shank Diameter - Decimal: 0.25 in
- Shank Diameter - Fractional: 1/4 in
- Shank Diameter - Metric: 6.35 mm
- Overall Length: 2-1/2 in
- Cutting Direction: Right Hand
- Helix Angle: 30 deg
- Arbor/Shank Size: 1/4 in
- Cutter Diameter: 13/64 in
- Cutter Diameter - Decimal: 0.20312 in
- Cutter Diameter - Fractional: 13/64 in
- Finish: TiAlN Coated
- Length of Cut - Fractional: 5/8 in
- Length Type: Medium Length
- Overall Length - Fractional: 2-1/2 in
- Series: C430
- Shank Type: Cylindrical
- Flute Type: Spiral
- Cutter Diameter - Metric: 5.159 mm
- Type: Center Cutting
- Solid carbide provides better rigidity than high speed steel, it is extremely heat resistant and used for high speed applications on cast iron, non-ferrous materials, plastics and other tough-to-machine materials
- Titanium aluminum nitride (TiAlN) has a higher hardness and oxidation temperature versus TiN and TiCN, as a result, it is particularly advantageous for higher speed operations in a variety of steel machining applications
- 90 deg cutting edge
- 30 deg axial rake
- 10 deg radial rake
- 10 deg neck
- F - Step tool shape
General Purpose Applications
Niagara Cutter End Mill | Center Cutting Single End Medium Length Square End | Series: C430 | 13/64 in Cutter Dia | 2-1/2 in Overall Length | 1/4 in | 5/8 in Maximum Depth of Cut | 4 Flutes | Spiral Flute | 1/4 in Shank Dia | Right Hand Cutting | 30 deg Helix Angle | Cylindrical Shank | ANSI Code: C430-0.203-F3-S.0-Z4 | ISO Code: C430.203F3S.0Z4 | Solid Carbide | TiAlN Coated
