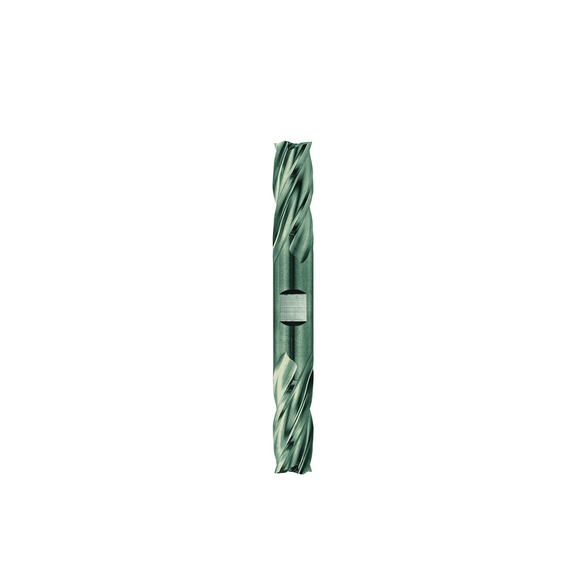

Niagara Cutter 17006406 CSD430 Center Cutting Double End Short Length Square End End Mill, 1/4 in Dia Cutter, 1/2 in Length of Cut, 4 Flutes, 1/4 in Dia Shank, 2-1/2 in OAL, Uncoated
NIACUT 17006406
$28.83
/ EA
Out of Stock
- Mill Diameter: 1/4 in
- Number of Flutes: 4
- Length of Cut: 1/2 in
- Material: Solid Carbide
- Finish/Coating: Uncoated
- Shank Diameter: 1/4 in
- Shank Diameter - Decimal: 0.25 in
- Shank Diameter - Fractional: 1/4 in
- Shank Diameter - Metric: 6.35 mm
- Overall Length: 2-1/2 in
- Cutting Direction: Right Hand
- Helix Angle: 30 deg
- Cutter Diameter: 1/4 in
- Cutter Diameter - Decimal: 0.25 in
- Cutter Diameter - Metric: 6.35 mm
- Length of Cut - Fractional: 1/2 in
- Overall Length - Fractional: 2-1/2 in
- Series: CSD430
- Shank Type: Cylindrical
- Type: Center Cutting;General Purpose
- Length Type: Short Length
- Flute Type: Spiral
- Cutter Diameter - Fractional: 1/4 in
- Finish: Uncoated
- Solid carbide provides better rigidity than high speed steel, it is extremely heat resistant and used for high speed applications on cast iron, non-ferrous materials, plastics and other tough-to-machine materials
- Uncoated tools do not feature supportive treatments on the cutting edge, they are used at reduced speeds for general applications on non-ferrous metals
- 90 deg cutting edge
- 30 deg axial rake
- 10 deg radial rake
- D - Cylindrical tool shape
For general machining of most materials
Niagara Cutter End Mill | Center Cutting Double End Short Length Square End | Series: CSD430 | 1/4 in Cutter Dia | 2-1/2 in Overall Length | 1/4 in | 1/2 in Maximum Depth of Cut | 4 Flutes | Spiral Flute | 1/4 in Shank Dia | Right Hand Cutting | 30 deg Helix Angle | Cylindrical Shank | ANSI Code: CSD430-0.250-XD2-S.0-Z4 | ISO Code: CSD430.250XD2S.0Z4 | Solid Carbide | Uncoated
