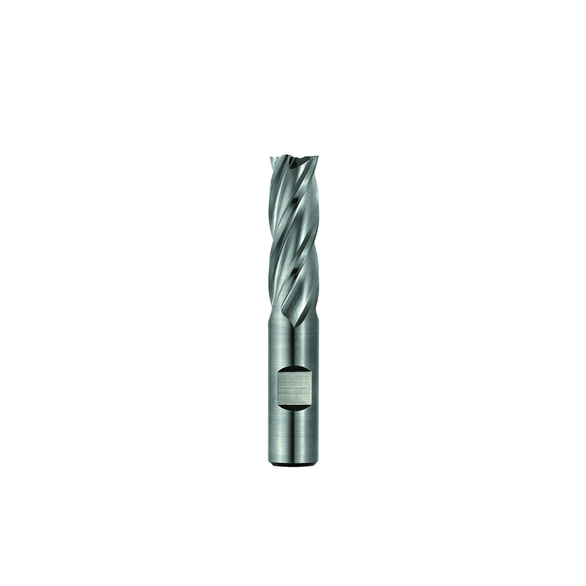

Niagara Cutter 17016421 SPC408 Center Cutting Extended Reach Single End Square End End Mill, 1/2 in Dia Cutter, 3 in Length of Cut, 4 Flutes, 1/2 in Dia Shank, 5 in OAL, TiCN Coated
NIACUT 17016421
$73.56
/ EA
Out of Stock
- Mill Diameter: 1/2 in
- Number of Flutes: 4
- Length of Cut: 3 in
- Material: M42 8% Cobalt
- Finish/Coating: TiCN Coated
- Shank Diameter: 1/2 in
- Shank Diameter - Decimal: 0.5 in
- Shank Diameter - Fractional: 1/2 in
- Shank Diameter - Metric: 12.7 mm
- Overall Length: 5 in
- Cutting Direction: Right Hand
- Helix Angle: 30 deg
- Arbor/Shank Size: 1/2 in
- Cutter Diameter: 1/2 in
- Cutter Diameter - Decimal: 0.5 in
- Cutter Diameter - Metric: 12.7 mm
- Diameter: 0.197 in
- Diameter - Decimal: 0.197 in
- Length of Cut - Decimal: 3 in
- Length Type: Extended Reach Length
- Overall Length - Decimal: 5 in
- Series: SPC408
- Type: Center Cutting
- Flute Type: Spiral
- Cutter Diameter - Fractional: 1/2 in
- Shank Type: Weldon Flat
- Cobalt is harder than high speed steel and provides better wear resistance, it is commonly used on high tensile alloys
- Titanium carbonitride (TiCN) is harder and more wear resistant than TiN and is commonly used on stainless steels, cast iron and aluminum alloys
- 90 deg cutting edge
- 1.781 in L minimum clamping
- 30 deg axial rake
- 10 deg radial rake
- Square nose end mills create sharp, unrounded cuts
- Center cutting design allows the end mill to plunge into material like a drill bit while also performing conventional surface milling
- D - Cylindrical tool shape
For profiling and slotting in all materials
Niagara Cutter End Mill | Center Cutting Extended Reach Single End Square End | Series: SPC408 | 1/2 in Cutter Dia | 5 in Overall Length | 1/2 in | 3 in Maximum Depth of Cut | 4 Flutes | Spiral Flute | 1/2 in Shank Dia | Right Hand Cutting | 30 deg Helix Angle | Weldon Flat Shank | ANSI Code: SPC408-0.500-D6-S.3-Z4 | ISO Code: SPC408.500D6S.3Z4 | M42 8% Cobalt | TiCN Coated
