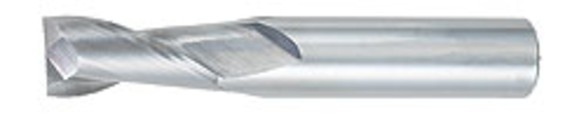

OSG 452-5625 9/16 in Milling Dia, 1-1/8 in LOC, 3-1/2 in OAL, 2 Flutes, Micrograin Carbide, Bright, Square End Mills
OSG 452-5625
$91.16
/ EA
Out of Stock
- Centercutting: Center Cutting
- Mill Diameter: 9/16 in
- Mill Diameter - Fractional: 9/16 in
- Number of Flutes: 2
- Length of Cut: 1-1/8 in
- Material: Micrograin Carbide
- Finish/Coating: Bright
- Shank Diameter: 9/16 in
- Shank Diameter - Decimal: 0.5625 in
- Shank Diameter - Fractional: 9/16 in
- Shank Diameter - Metric: 14.28 mm
- Single or Double End: Single End
- Overall Length: 3-1/2 in
- Flute Direction: Right Hand
- Cutting Direction: Right Hand
- Helix Angle: 30 deg
- Center Cutting: Yes
- Chipbreaker: No
- Cutter Diameter: 9/16 in
- Cutter Diameter - Fractional: 9/16 in
- Diameter: 0.197 in
- Diameter - Decimal: 0.197 in
- Extended Reach: No
- Length of Cut - Fractional: 1-1/8 in
- Material Grade: Micrograin
- Mill Diameter Tolerance: +0.001 in / -0 in
- Overall Length - Fractional: 3-1/2 in
- Series: 452
- Series/List: 452
- Shank Type: Straight
- Variable Helix: No
- Length Type: Regular Length
- Flute Type: Spiral
- Diameter - Fractional: 9/16 in
- Diameter - Metric: 14.28 mm
- Finish: Bright
- Variable Index: No
The standard carbide end mill lineup consists of a variety of different end mill designs, made to OSG quality standards at a value-added price point that is friendly to any tooling budget. An economical solution without sacrificing consistent tolerancing and precision.
Standard/Approvals:Micrograin
OSG 452-5625 Mill Diameter 9/16 in | Number of Flutes 2 | Length of Cut 1-1/8 in | Carbide | Bright | Square End Mill
