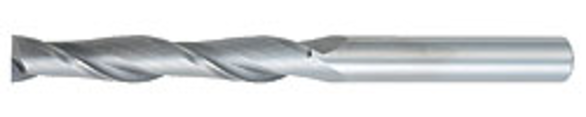

OSG 482-2500 1/4 in Milling Dia, 1-1/2 in LOC, 4 in OAL, 2 Flutes, Micrograin Carbide, Bright, Square End Mills
OSG 482-2500
$35.13
/ EA
Out of Stock
- Centercutting: Center Cutting
- Mill Diameter: 1/4 in
- Mill Diameter - Fractional: 1/4 in
- Number of Flutes: 2
- Length of Cut: 1-1/2 in
- Material: Micrograin Carbide
- Finish/Coating: Bright
- Shank Diameter: 1/4 in
- Shank Diameter - Decimal: 0.25 in
- Shank Diameter - Fractional: 1/4 in
- Shank Diameter - Metric: 6.35 mm
- Single or Double End: Single End
- Overall Length: 4 in
- Flute Direction: Right Hand
- Cutting Direction: Right Hand
- Helix Angle: 30 deg
- Center Cutting: Yes
- Chipbreaker: No
- Cutter Diameter: 1/4 in
- Diameter: 1/4 in
- Diameter - Metric: 6.35 mm
- Extended Reach: No
- Finish: Bright
- Flute Type: Spiral
- Length of Cut - Fractional: 1-1/2 in
- Length Type: Extra Long
- Material Grade: Micrograin
- Mill Diameter Tolerance: +0 / -0.002 in
- Overall Length - Decimal: 4 in
- Series: 482
- Series/List: 482
- Cutter Diameter - Fractional: 1/4 in
- Diameter - Decimal: 0.25 in
- Diameter - Fractional: 1/4 in
- Shank Type: Straight
- Variable Index: No
- Variable Helix: No
The standard carbide end mill lineup consists of a variety of different end mill designs, made to OSG quality standards at a value-added price point that is friendly to any tooling budget. An economical solution without sacrificing consistent tolerancing and precision
- Spiral flutes are constructed of a high flute angle to remove chips more easily
- Center Cutting tools have one or more cutting edges at the tip and are used in a variety of applications including plunging, drilling or ramping
Application:Cast iron, Carbon Steels, Alloy Steel, Die Steel, Stainless Steel, Hardened Steel < 45 HRC.
OSG 482-2500 Mill Diameter 1/4 in | Number of Flutes 2 | Length of Cut 1-1/2 in | Carbide | Bright | Square End Mill
