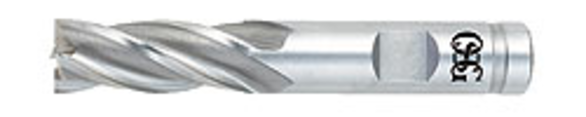

OSG 5818700 9.5 mm Milling Dia, 19.05 mm LOC, 63.5 mm OAL, 4 Flutes, HSS-CO, Bright, Square End Mills
OSG 5818700
$24.56
/ EA
Out of Stock
- Centercutting: No Center Cutting
- Mill Diameter: 9.50 mm
- Number of Flutes: 4
- Length of Cut: 3/4 in
- Material: HSS-CO
- Finish/Coating: Bright
- Shank Diameter: 3/8 in
- Shank Diameter - Decimal: 9.52 mm
- Shank Diameter - Fractional: 3/8 in
- Shank Diameter - Metric: 9.52 mm
- Single or Double End: Single End
- Overall Length: 2-1/2 in
- Flute Direction: Right Hand
- Cutting Direction: Right Hand
- Helix Angle: 30 deg
- Center Cutting: No
- Chipbreaker: No
- Cutter Diameter: 9.5 mm
- Cutter Diameter - Metric: 9.5 mm
- Diameter: 0.197 in
- Diameter - Decimal: 0.197 in
- Diameter - Metric: 9.5 mm
- Extended Reach: No
- Flute Type: Muliple Flute
- Length of Cut - Decimal: 19.05 mm
- Length of Cut - Fractional: 3/4 in
- Length of Cut - Metric: 19.05 mm
- Material Grade: M42
- Overall Length - Decimal: 63.5 mm
- Overall Length - Fractional: 2-1/2 in
- Overall Length - Metric: 63.5 mm
- Series: 581
- Series/List: 581
- Shank Type: Weldon Flat
- Variable Helix: No
- Length Type: Regular Length
- Finish: Bright
- Variable Index: No
HSS-Co END MILL High Performance Cobalt HSS End Mills for General Milling Applications
- Spiral flutes are constructed of a high flute angle to remove chips more easily
- Uncoated tools do not feature supportive treatments on the cutting edge. They are are used at reduced speeds for general applications on nonferrous metals
- Center Cutting tools have one or more cutting edges at the tip and are used in a variety of applications including plunging, drilling or ramping.
OSG 5818700 Mill Diameter 0.3740 in | Number of Flutes 4 | Length of Cut 3/4 in | HSS-CO | Bright | Square End Mill
