Walter Tools

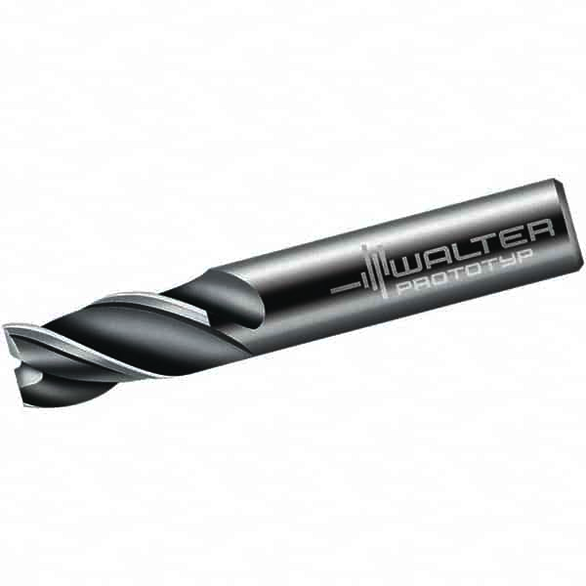

PROTYP 5082301 H3029146-6 3 F 0.236 Dia End Mill
PROTYP 5082301
$75.19
/ EA
Out of Stock
- Centercutting: Centercutting
- Mill Diameter: 6 mm
- Number of Flutes: 3
- Length of Cut: 10 mm
- Material: Solid Carbide
- Finish/Coating: TiCN-Coated
- Shank Diameter: 6 mm
- Shank Diameter - Decimal: 0.236 in
- Shank Diameter - Metric: 5.994 mm
- Single or Double End: Single End
- Overall Length: 57 mm
- Flute Direction: Right Hand
- Cutting Direction: Right Hand
- Helix Angle: 45 deg
- Chamfer Angle: 0 deg
- Coolant Through: No
- Diameter: 0.23622 in
- Diameter - Decimal: 0.23622 in
- Diameter - Metric: 6 mm
- Extended Reach: No
- Overall Length - Decimal: 2.244 in
- Overhang Length: 0.8268 in
- Series: Protostar N 45
- Shank Type: Cylindrical
Standard:
DIN1835-A/DIN6535-HA
DIN1835-A/DIN6535-HA
