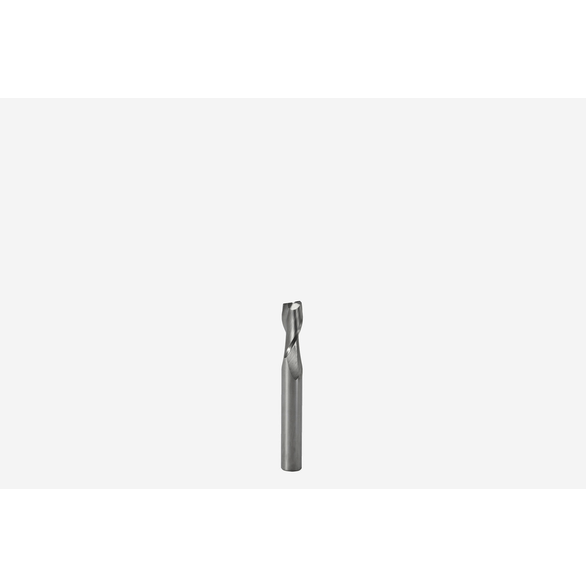

JABRO® VHM 02606063 J93 Center Cutting Single End Square End End Mill, 0.236 in Dia Cutter, 0.787 in Length of Cut, 2 Flutes, 0.236 in Dia Shank, 2.559 in OAL, Uncoated

Seco® has developed an extensive range of VHM solid carbide milling cutters with diameters of 1 - 32 mm based on their extensive knowledge and experience in this field. The available geometries are specifically designed to fit many applications and the range is so extensive that you are likely to find a standard application where a custom made cutter would normally be required.

• JABRO®-VHM - General machining technology
• Solid carbide provides better rigidity than high speed steel, it is extremely heat resistant and used for high speed applications on cast iron, non-ferrous materials, plastics and other tough-to-machine materials
• Uncoated tools do not feature supportive treatments on the cutting edge, they are used at reduced speeds for general applications on non-ferrous metals
• 90 deg cutting edge
• 1.417 in L minimum clamping
• 30 deg axial rake
• 10 deg radial rake
• D - Cylindrical tool shape

JABRO JABRO VHM End Mill | Center Cutting Single End Square End | Series: J93 | 0.236 in Cutter Dia | 2.559 in Overall Length | 0.236 in | 0.787 in Maximum Depth of Cut | 2 Flutes | Spiral Flute | 0.236 in Shank Dia | Right Hand Cutting | 30 deg Helix Angle | Cylindrical Shank | ANSI Code: 93060-F | ISO Code: 93060-F | Solid Carbide | Uncoated
