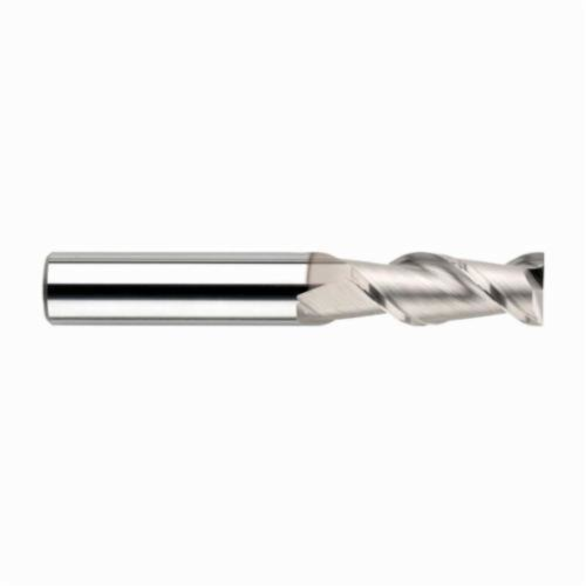

SGS® Ski-Carb, 44 Center Cutting Square End High Performance End Mill, 3/8 in Dia Cutter, 3/8 in Shank, 2 Flutes

The Ski-Carb engineered with its patented Ski-Land helps to control and break long chips in non-ferrous applications at tremendous speed and feed rates. The circular land stabilizes the cutter while producing superior surface finishes. The unique double flute and high helix minimizes the loads without reducing edge strength.

• The original high performance end mill for machining aluminum
• Circular land provides stability with superior surface finishes
• Ski-Land with primary and secondary flute wall avoids chip interference and controls the chip path
• High shear design minimizes the load and increases cutting efficiency
• Positive rake angle
• Solid carbide provides better rigidity than high speed steel
• It is extremely heat resistant and used for high speed applications on cast iron, non-ferrous materials, plastics and other tough-to-machine materials
• External coolant
• Applicable material: non-ferrous and plastic/composites
• +0.0000/-0.00043 in D1, H6 D2 tolerances

Application: Aerospace, Medical, Power Generation, Automotive, Mold and Die, Castings and Foundries, General Engineering

SGS® High Performance End Mill | Center Cutting Square End | Series: Ski-Carb | 44 | 3/8 in Cutter Dia | 2-1/2 in Overall Length | 3/4 in Maximum Depth of Cut | 2 Flutes | Spiral Flute | 3/8 in Shank Dia | Right Hand Cutting | 45 deg Helix Angle | Straight Shank | Micrograin Solid Carbide | Uncoated
