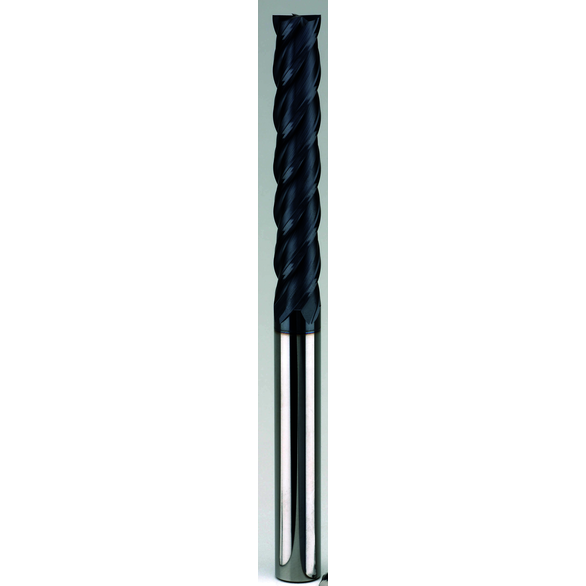

SGS 70563 7MS High Performance Metric Square End High Performance End Mill, 25 mm Dia Cutter, 75 mm Length of Cut, 4 Flutes, 25 mm Dia Shank, 150 mm OAL, TX Coated

The series 7 end mill provides precision performance and high production rates without chatter. This is the tool that can deliver it all in long lengths of cut: chatter suppression, longer tool life, better surface finishes, reduced harmonics and improved side-wall straightness.

• Variable pitch fluting geometry suppresses chatter and produces better surface finishes
• Rigid construction minimizes deflection and increases part accuracy
• Optimized tool geometry increases tool life while strengthening all cutting edges
• Positive rake angle
• External coolant
• Flute spacing unequal
• Applicable materials: steels, stainless steels, cast iron, high temp alloys and titanium
• +0.000/-0.005 mm D1, H6 D2 tolerences

Application: Aerospace, Medical, Power Generation, Automotive, Castings, Foundries, General Engineering, Mold and Die

SGS® High Performance End Mill | Ball End Extra Long Length Variable Geometry | Series: 7MB | 25 mm Cutter Dia | 150 mm Overall Length | 75 mm Maximum Depth of Cut | 4 Flutes | Spiral Flute | 25 mm Shank Dia | Right Hand Cutting | 30 deg Helix Angle | Straight Shank | Micrograin Solid Carbide | AlTiN Coated
