SUMITOMO

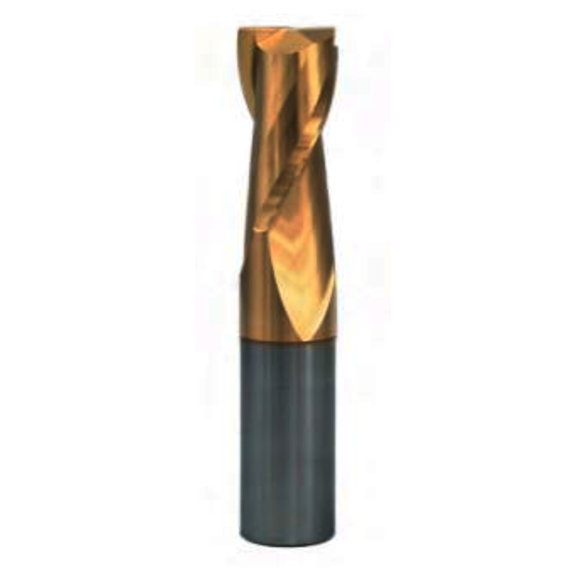

Sumitomo Electric Carbide U100251 Mill Diameter 1/2 in, Number of Flutes 2, Length of Cut 1.0000 in, Square End Mill
SUMI U100251
$54.28
/ EA
Out of Stock
- Centercutting: Centercutting
- Mill Diameter: 1/2 in
- Mill Diameter - Decimal: 0.5000 in
- Mill Diameter - Fractional: 1/2 in
- Number of Flutes: 2
- Length of Cut: 1 in
- Material: Solid Carbide
- Finish/Coating: Bright, Uncoated
- Shank Diameter: 1/2 in
- Shank Diameter - Decimal: 0.5000 in
- Shank Diameter - Fractional: 1/2 in
- Single or Double End: Single End
- Overall Length: 3 in
- Flute Direction: Right Hand
- Cutting Direction: Right Hand
- Helix Angle: 30 deg
- Chipbreaker: No
- Coolant Through: No
- Extended Reach: No
- Series/List: MZI2
- Flute Type: Spiral
- Spiral flutes are constructed of a high flute angle to remove chips more easily
- Center Cutting tools have one or more cutting edges at the tip and are used in a variety of applications including plunging, drilling or ramping
Standard/Approvals:MZI232
Sumitomo Electric Carbide U100251 Mill Diameter 1/2 in | Number of Flutes 2 | Length of Cut 1.0000 in | Carbide | Uncoated | Square End Mill
