SUMITOMO

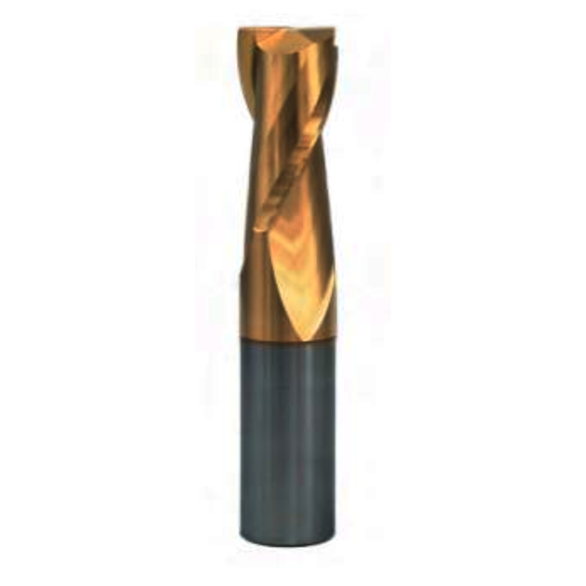

Sumitomo Electric Carbide U100374 Mill Diameter 0.1378 in, Number of Flutes 4, Length of Cut 0.3150 in, Square End Mill
SUMI U100374
$27.15
/ EA
Out of Stock
- Centercutting: Centercutting
- Mill Diameter: 3.5 mm
- Mill Diameter - Decimal: 0.1378 in
- Number of Flutes: 4
- Length of Cut: 8 mm
- Material: Solid Carbide
- Finish/Coating: TiN-Coated
- Shank Diameter: 6 mm
- Shank Diameter - Metric: 6.00 mm
- Single or Double End: Single End
- Overall Length: 51 mm
- Flute Direction: Right Hand
- Cutting Direction: Right Hand
- Helix Angle: 30 deg
- Chipbreaker: No
- Coolant Through: No
- Extended Reach: No
- Series/List: MZM
- Flute Type: Spiral
- Spiral flutes are constructed of a high flute angle to remove chips more easily
- Center Cutting tools have one or more cutting edges at the tip and are used in a variety of applications including plunging, drilling or ramping
Standard/Approvals:MZM4035C
Sumitomo Electric Carbide U100374 Mill Diameter 0.1378 in | Number of Flutes 4 | Length of Cut 0.3150 in | Carbide | TiN | Square End Mill
