MIC100 MRF-187-031 0.0312" (1/32) Radius x 0.262" LOC x 15° per side - 2 FL
MIC100 MRF-187-031
$64.76
/ EA
Out of Stock
- Material: Carbide
- Taper Angle Per Side: 15 deg
- Shank Diameter: 0.1875 in
- Shank Diameter - Decimal: 0.1875 in
- Shank Diameter - Fractional: 3/16 in
- Shank Diameter - Metric: 4.7625 mm
- Length of Cut: 0.625 in
- Number of Flutes: 2
- Helix Angle: 12 deg
- Finish/Coating: Bright / Uncoated
- Overall Length: 2 in
- End Shape: Ball
- Mill Diameter: 0.0624 in
- Mill Diameter - Decimal: 0.0624 in
- Overall Length - Decimal: 2 in
- Overall Length - Metric: 50.8 mm
- Part Number: MRF-187-031
- Series/List: MRF
- These runner cutters have a 30° point angle at the tip of their cutting head and make wider channels than 20° runner cutters
- They are made from carbide steel, which provides excellent wear resistance, heat resistance, and hardness
- The cutters can be used for milling tool steel and other difficult-to-machine materials
- Runner cutters are designed to create channels in die and mold cavities
- They are used in milling applications in manufacturing and production facilities

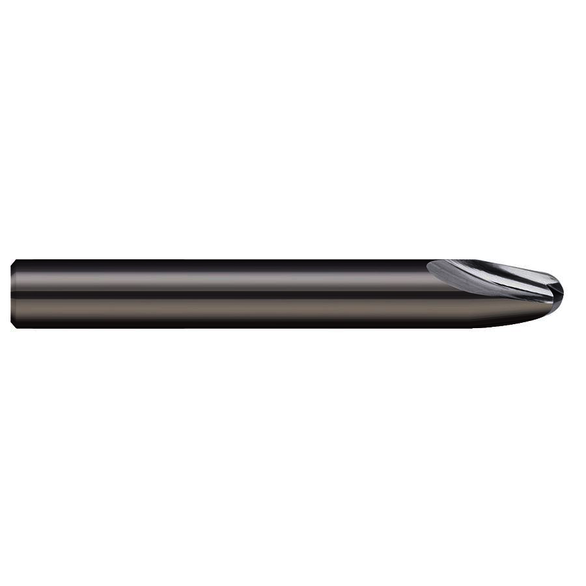

Micro 100 MRF-187-031 Carbide | 3/16 in | Tapered End Mill
