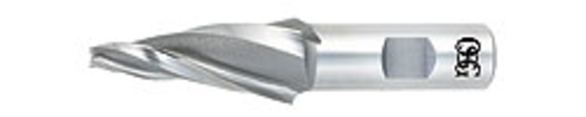

OSG 5974200 10 deg taper per side,1/8 in Milling Dia, 2-3/4 in OAL, M42 HSS-CO, Bright, Tapered End Mills
OSG 5974200
$68.80
/ EA
Out of Stock
- Material: High Speed Steel - Cobalt
- End Type: Center Cutting
- Taper Angle Per Side: 10 deg
- Small End Diameter: 1/8 in
- Shank Diameter: 0.5 in
- Shank Diameter - Decimal: 0.5 in
- Shank Diameter - Fractional: 1/2 in
- Shank Diameter - Metric: 12.7 mm
- Length of Cut: 0.75 in
- Number of Flutes: 3
- Helix Angle: 25 deg
- Finish/Coating: Bright / Uncoated
- Overall Length: 2.75 in
- Centercutting: Center Cutting
- Cutter Diameter: 1/8 in
- Cutting Direction: Right Hand
- Diameter: 1/8 in
- End Shape: Square
- Flute Direction: Right Hand
- Length of Cut - Decimal: 0.75 in
- Length of Cut - Fractional: 3/4 in
- Length of Cut - Metric: 19.05 mm
- Material Grade: M42
- Mill Diameter: 0.125 in
- Mill Diameter - Decimal: 0.125 in
- Mill Diameter - Fractional: 1/8 in
- Mill Diameter - Metric: 3.175 mm
- Overall Length - Decimal: 2.75 in
- Overall Length - Fractional: 2-3/4 in
- Overall Length - Metric: 69.85 mm
- Series: 597
- Series/List: 597
- Shank Type: Weldon Flat
- Taper Angle: 10 deg
- Flute Type: Spiral
- Cutter Diameter - Fractional: 1/8 in
- Diameter - Fractional: 1/8 in
- Diameter - Decimal: 0.125 in
- Diameter - Metric: 3.175 mm
- Finish: Bright
Application:General Milling Applications
OSG 5974200 Material HSS-CO | End Type Center Cutting | Taper Angle Per Side 10 Degree | 1/8 in | 1/2 in | Tapered End Mill
