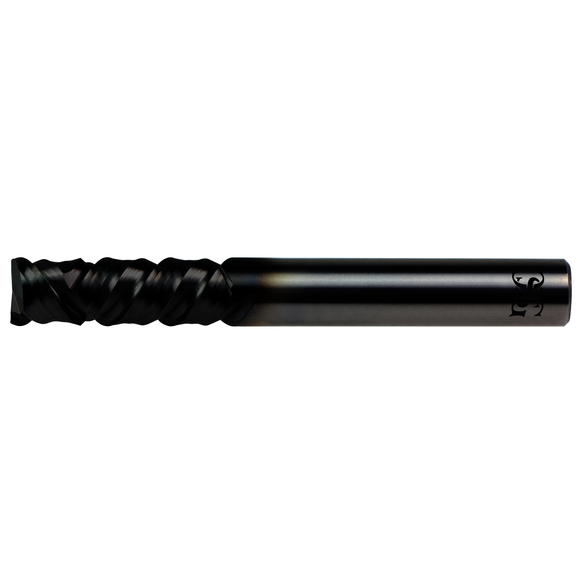

OSG 20685116 0.5000 in Dia, 2.0000 in LOC, 2 Flute, Spiral Router Bits
OSG 20685116
$561.95
/ EA
Out of Stock
- Cutting Diameter: 1/2 in
- Cutting Diameter - Decimal: 0.5 in
- Cutting Diameter - Fractional: 1/2 in
- Flute Type: Down Spiral
- Material: Carbide
- Shank Diameter: 1/2 in
- Shank Diameter - Fractional: 1/2 in
- Overall Length: 4 in
- End Type: Single
- Cutting Width Tolerance: 2 mm
- Finish: Diamond Coated
- Helix Angle: 60 deg
- Number of Flutes: 2
- Series: 2068
- Shank Type: Shrink Fit
The EXOPRO® AERO-HBC is a herringbone style router for high feed rates and excellent surface finish. The router features a compression cutting mechanism along with OSG's patented diamond coating.
- Compression mechanism
- Neutralizes cutting forces to prevent delamination on both top and bottom laminates
- Low cutting force
- Long tool life
Application:Carbon and glass composites and honeycombsHigh feed routing and finsihingThick laminatesThermoplastic matrix
OSG 20685116 0.5000 in Dia | 2.0000 in LOC | 2 Flute | Carbide | Spiral | Spiral Router Bits
