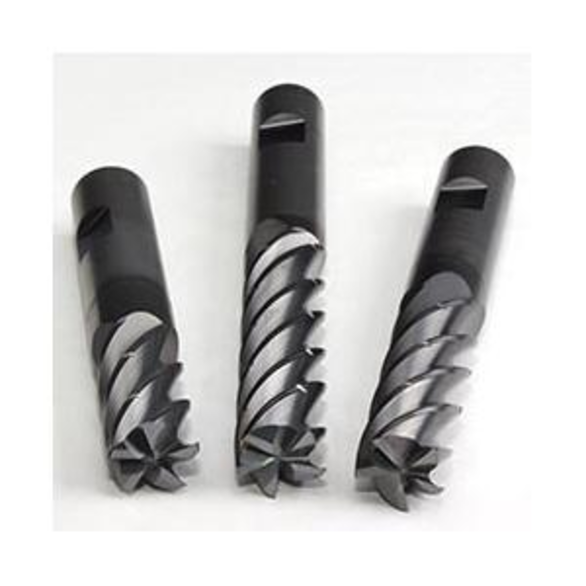

Emuge 2535L.016 Square End Mills 16mm Milling Dia, 4XD LOC, 128mm OAL, 5 Flutes, Carbide
EMUGE 2535L.016
$487.05
/ EA
Out of Stock
- Mill Diameter: 16 mm
- Mill Diameter - Decimal: 0.6299 in
- Mill Diameter - Metric: 16 mm
- Number of Flutes: 4
- Length of Cut: 2.5197 in
- Material: Carbide
- Shank Diameter: 16 mm
- Shank Diameter - Metric: 16 mm
- Single or Double End: Single End
- Overall Length: 128 mm
- Flute Direction: Right Hand
- Cutting Direction: Right Hand
- Helix Angle: 38 - 42 deg
- Coolant Through: No
- Cutter Diameter: 16 mm
- Cutter Diameter - Metric: 16 mm
- Flute Type: Spiral
- Length of Cut - Metric: 64 mm
- Overall Length - Metric: 128 mm
- Series: Trochoidal Jet-Cut 2535L
- Shank Type: Weldon Flat
- The Trochoidal Jet-Cut series was especially developed for use with advanced milling strategies in machining steels and cast materials
- Vibration dampening with variable helix/flute spacing
- Heat and wear resistant mono-layer AlCr - PVD applied coating
- Roughing/finishing flute profile for optimum performance
- Staggered chip breaker design for even wear in depths up to 2XD
- High metal removal rate combined with the best possible surface quality
Standards/Approvals: DIN 6535|PROP65: This product contains Cobalt, a chemical known to the State of California to cause cancer
For roughing and finishing applications
Emuge Square End Mill | Series: Trochoidal Jet-Cut 2535L | 16 mm Cutter Dia | 128 mm Overall Length | 4XD Maximum Depth of Cut | 5 Flutes | Spiral Flute | 16 mm Shank Dia | Right Hand Cutting | 38/42 deg Helix Angle | Weld-On Flat Shank | Carbide | AlCr Coated
