Kennametal

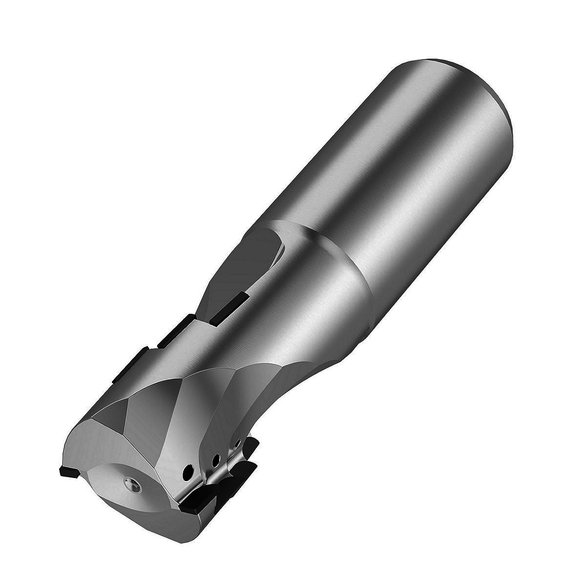

KENNAM 6752770 0.0150 in Corner Rad, 1.5000 in Mill Dia, 2.0000 in LOC, 5.5000 in OAL, 3 Flutes, Diamond, Uncoated, Corner Radius & Corner Chamfer End Mill

KENNAM 6752770
$1,713.60 / EA
Out of Stock
KENNAM 6752770 0.0150 in Corner Rad, 1.5000 in Mill Dia, 2.0000 in LOC, 5.5000 in OAL, 3 Flutes, Diamond, Uncoated, Corner Radius & Corner Chamfer End Mill
  • Mill Diameter: 1-1/2 in
  • Mill Diameter - Decimal: 1.5 in
  • Mill Diameter - Fractional: 1-1/2 in
  • Mill Diameter - Metric: 38.1 mm
  • Length of Cut: 2 in
  • Shank Diameter: 1-1/4 in
  • Shank Diameter - Decimal: 1.25 in
  • Shank Diameter - Fractional: 1-1/4 in
  • Shank Diameter - Metric: 31.75 mm
  • End Type: Corner Radius
  • Material: Carbide
  • Finish/Coating: Diamond
  • Overall Length: 5-1/2 in
  • Centercutting: No Center Cutting
  • Center Cutting: No Center Cutting
  • Chipbreaker: No
  • Corner Radius: 0.015 in
  • Corner Radius - Decimal: 0.015 in
  • Flute Type: Helical
  • Hand of Tool: R - Right
  • Length of Cut - Decimal: 2 in
  • Length of Cut - Metric: 50.8 mm
  • Number of Flutes: 3
  • Overall Length - Decimal: 5.5 in
  • Overall Length - Fractional: 5-1/2 in
  • Overall Length - Metric: 139.7 mm
  • Shank Type: Straight Shank
  • Single or Double End: Single End
  • Variable Helix: No
  • Flute Direction: Right Hand
  • Variable Index: No

Standard/Approvals: ALSR2RA1500N200HAR015I KD1410

Application: Slotting:Square End, Side Milling/Shoulder Milling:Sqaure End, Corner Style:Corner radius, Plunge Milling, Trochoidal Milling, Face Milling

Kennametal 16752770 1.500 in Dia | 3 Flute | Solid Carbide | Uncoated | Corner Radius & Corner Chamfer End Mill
