Kennametal

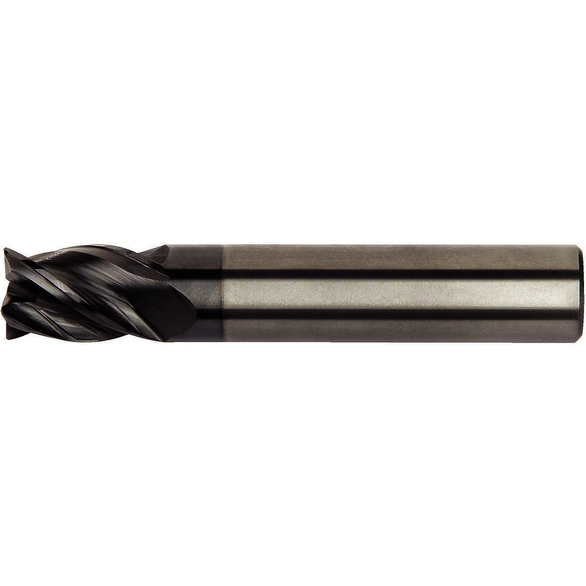

Kennametal 6769632 0.3150 in Dia, 4 Flute, Solid Carbide, Corner Radius & Corner Chamfer End Mill

KENNAM 6769632
$55.53 / EA
Out of Stock
Kennametal 6769632 0.3150 in Dia, 4 Flute, Solid Carbide, Corner Radius & Corner Chamfer End Mill
  • Number of Flutes: 4
  • Material: Carbide
  • Shank Diameter - Decimal: 0.315 in
  • Shank Diameter - Metric: 8 mm
  • Helix Angle: 36 deg
  • Centercutting: Center Cutting
  • End Type: Corner Chamfer
  • Finish/Coating: AlTiN
  • Hand of Tool: R - Right
  • Material Grade: KCPM15
  • Overall Length - Decimal: 2.2835 in
  • Flute Type: Spiral

Standard/Approvals: H1TE4CH0800S012HBM, KCPM15

Application: Pocketing, Plunge Milling, Side Milling/Shoulder Milling: Roughing, Slotting: Square End, Ramping: Blank, Helical Milling, , Tool Dimensions: Flute Configuration: 4, Trochoidal Milling, Side Milling/Shoulder Milling: Eased Chamfer, Shank - Cylindrical Weldon, Corner Style: Corner Chamfer, 100147465

Kennametal 6769632 0.3150 in Dia | 4 Flute | Solid Carbide | AlTiN | Corner Radius & Corner Chamfer End Mill
