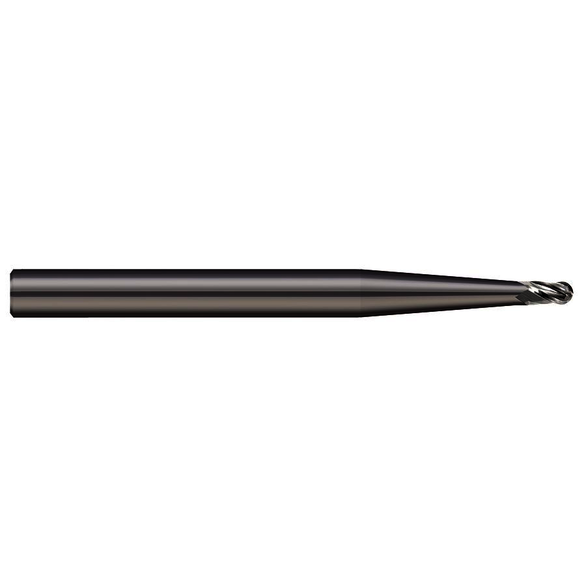

MIC100 BMS-040-2 2 FL - 0.0400" Cutter DIA x 0.060" LOC
MIC100 BMS-040-2
$33.64
/ EA
Out of Stock
- Mill Diameter: 1/32 in
- Mill Diameter - Fractional: 1/32 in
- Number of Flutes: 2
- Length of Cut: 0.06 in
- Material: Carbide
- Overall Length: 1.5 in
- Shank Diameter: 1/8 in
- Shank Diameter - Decimal: 0.125 in
- Shank Diameter - Fractional: 1/8 in
- Shank Diameter - Metric: 3.175 mm
- Finish/Coating: Bright (Uncoated)
- Single or Double End: Single End
- Helix Angle: 30 deg
- Center Cutting: Centercutting
- Cutting Direction: Right Hand
- Diameter: 0.197 in
- Diameter - Decimal: 0.197 in
- Diameter - Metric: 1.016 mm
- End Type: Ball Nose
- Flute Length: 0.06 in
- Length Type: Stub Length
- Material Grade: Micrograin
- Part Number: BMS-040-2
- Series/List: BMS
- Type: Center Cutting;Miniature
- Flute Direction: Right Hand
- The bright finish on these end mills provides a smooth, polished surface
- Roughing/finishing end mills remove large amounts of material and create a smooth finish on the workpiece at the same time
- Miniature end mills have a smaller diameter and provide more precision and better control over material removal during detailed milling tasks than standard ball end mills
Application:
Micro 100 BMS-040-2 1/32 in | 2 | 3/64 in | Carbide | 1.5000 in | Ball End Mill
