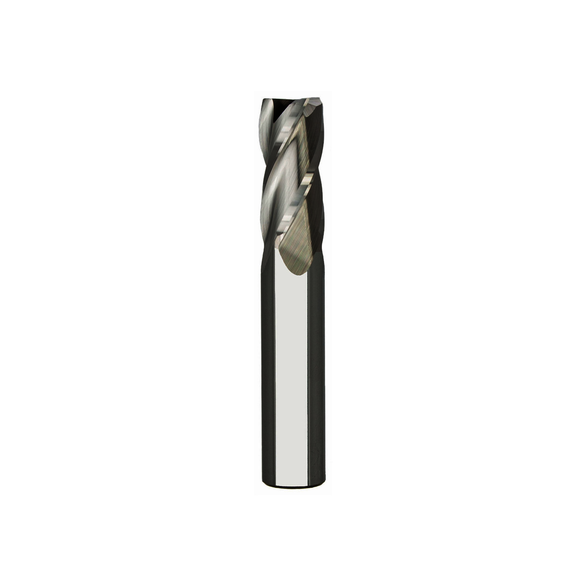

Niagara Cutter 17000282 C430M Center Cutting Extended Reach Single End Square End End Mill, 5 mm Dia Cutter, 25 mm Length of Cut, 4 Flutes, 5 mm Dia Shank, 75 mm OAL, AlTiN Coated
NIACUT 17000282
$34.57
/ EA
Out of Stock
- Mill Diameter: 5 mm
- Number of Flutes: 4
- Length of Cut: 25 mm
- Material: Solid Carbide
- Finish/Coating: AlTiN Coated
- Shank Diameter: 5 mm
- Shank Diameter - Decimal: 0.19685 in
- Shank Diameter - Metric: 5 mm
- Overall Length: 75 mm
- Cutting Direction: Right Hand
- Helix Angle: 30 deg
- Arbor/Shank Size: 5 mm
- Cutter Diameter: 5 in
- Cutter Diameter - Decimal: 0.19685 in
- Cutter Diameter - Metric: 5 mm
- Finish: AlTiN
- Length of Cut - Metric: 25 mm
- Overall Length - Metric: 75 mm
- Series: C430M
- Shank Type: Cylindrical
- Type: Center Cutting
- Length Type: Extended Reach Length
- Flute Type: Spiral
- Solid carbide provides better rigidity than high speed steel, it is extremely heat resistant and used for high speed applications on cast iron, non-ferrous materials, plastics and other tough-to-machine materials
- Aluminum titanium nitride (AlTiN) is one of the most abrasive-resistant and hardest of the coatings, it is commonly used for machining aircraft and aerospace material, nickel alloys, stainless steel, titanium, cast iron and carbon steel
- 90 deg cutting edge
- 30 deg axial rake
- 10 deg radial rake
- D - Cylindrical tool shape
For general machining of most materials
Niagara Cutter End Mill | Center Cutting Extended Reach Single End Square End | Series: C430M | 5 mm Cutter Dia | 75 mm Overall Length | 5 mm | 25 mm Maximum Depth of Cut | 4 Flutes | Spiral Flute | 5 mm Shank Dia | Right Hand Cutting | 30 deg Helix Angle | Cylindrical Shank | ANSI Code: C430M-050-D5-S.0-Z4 | ISO Code: C430M050D5S.0Z4 | Solid Carbide | AlTiN Coated
