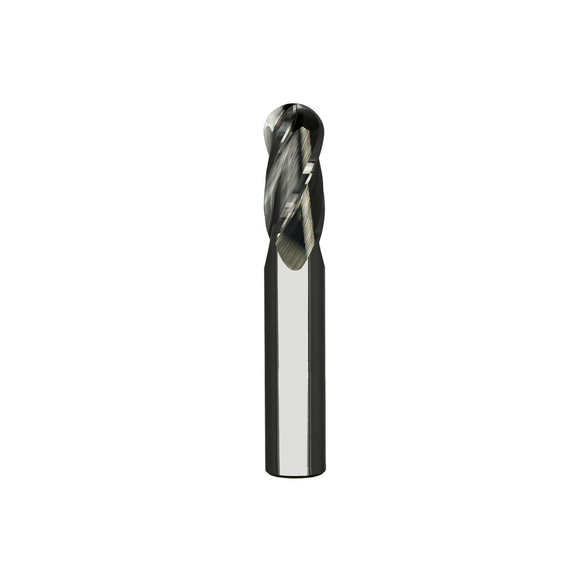

Niagara Cutter 17001080 CB430 Ball End Center Cutting Extended Reach Single End End Mill, 5/16 in Dia Cutter, 1-1/2 in Length of Cut, 4 Flutes, 5/16 in Dia Shank, 6 in OAL, TiAlN Coated
NIACUT 17001080
$81.95
/ EA
Out of Stock
- Mill Diameter: 5/16 in
- Number of Flutes: 4
- Length of Cut: 1-1/2 in
- Material: Solid Carbide
- Overall Length: 6 in
- Shank Diameter: 5/16 in
- Shank Diameter - Decimal: 0.3125 in
- Shank Diameter - Fractional: 5/16 in
- Shank Diameter - Metric: 7.937 mm
- Finish/Coating: TiAlN-Coated
- Helix Angle: 30 deg
- Cutter Diameter: 5/16 in
- Cutter Diameter - Decimal: 0.3125 in
- Cutter Diameter - Fractional: 5/16 in
- Cutter Diameter - Metric: 7.937 mm
- Cutting Direction: Right Hand
- Finish: TiAlN Coated
- Flute Type: Spiral
- Length of Cut - Fractional: 1-1/2 in
- Shank Type: Cylindrical
- Length Type: Extended Reach Length
- Series: CB430
- Type: Center Cutting
- Solid carbide provides better rigidity than high speed steel, it is extremely heat resistant and used for high speed applications on cast iron, non-ferrous materials, plastics and other tough-to-machine materials
- Titanium aluminum nitride (TiAlN) has a higher hardness and oxidation temperature versus TiN and TiCN, as a result, it is particularly advantageous for higher speed operations in a variety of steel machining applications
- 90 deg cutting edge
- 30 deg axial rake
- 10 deg radial rake
- D - Cylindrical tool shape
For general machining of most materials
Niagara Cutter End Mill | Ball End Center Cutting Extended Reach Single End | Series: CB430 | 5/16 in Cutter Dia | 6 in Overall Length | 5/16 in | 1-1/2 in Maximum Depth of Cut | 4 Flutes | Spiral Flute | 5/16 in Shank Dia | Right Hand Cutting | 30 deg Helix Angle | Cylindrical Shank | ANSI Code: CB430-0.313-D6-B.0-Z4 | ISO Code: CB430.313D6B.0Z4 | Solid Carbide | TiAlN Coated
