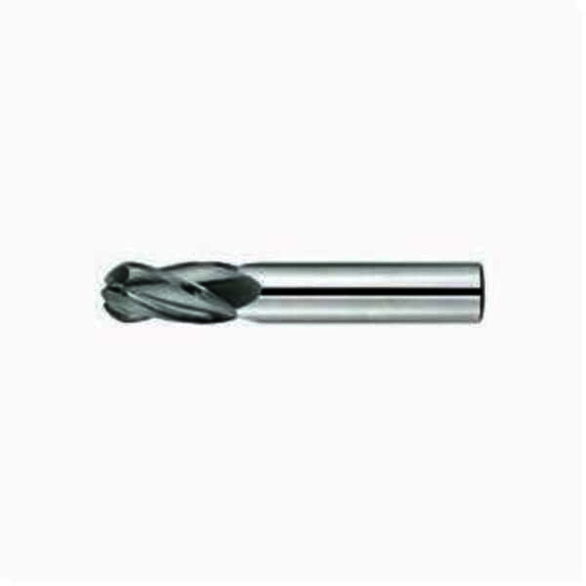

Niagara Cutter 17001097 CB430 Ball End Center Cutting Extended Reach Single End End Mill, 1/2 in Dia Cutter, 3 in Length of Cut, 4 Flutes, 1/2 in Dia Shank, 6 in OAL, TiAlN Coated
NIACUT 17001097
$121.44
/ EA
Out of Stock
- Mill Diameter: 1/2 in
- Mill Diameter - Fractional: 1/2 in
- Number of Flutes: 4
- Length of Cut: 3 in
- Material: Solid Carbide
- Overall Length: 6 in
- Shank Diameter: 1/2 in
- Shank Diameter - Fractional: 1/2 in
- Finish/Coating: TiAlN-Coated
- Single or Double End: Single End
- Helix Angle: 30 deg
- Cutter Diameter: 1/2 in
- Cutting Direction: Right Hand
- Material Grade: UNSPEC
- Part Number: N53999
- Series/List: CB430
- Shank Type: Cylindrical
- Flute Type: Spiral
- Cutter Diameter - Fractional: 1/2 in
- Solid carbide provides better rigidity than high speed steel, it is extremely heat resistant and used for high speed applications on cast iron, non-ferrous materials, plastics and other tough-to-machine materials
- Titanium aluminum nitride (TiAlN) has a higher hardness and oxidation temperature versus TiN and TiCN, as a result, it is particularly advantageous for higher speed operations in a variety of steel machining applications
- 90 deg cutting edge
- 1.781 in L minimum clamping
- 30 deg axial rake
- 10 deg radial rake
- Ball nose end mills create contoured surfaces
- Center cutting design allows the end mill to plunge into material like a drill bit while also performing conventional surface milling
- D - Cylindrical tool shape
For general machining of most materials
Niagara Cutter End Mill | Ball End Center Cutting Extended Reach Single End | Series: CB430 | 1/2 in Cutter Dia | 6 in Overall Length | 1/2 in | 3 in Maximum Depth of Cut | 4 Flutes | Spiral Flute | 1/2 in Shank Dia | Right Hand Cutting | 30 deg Helix Angle | Cylindrical Shank | ANSI Code: CB430-0.500-D6-B.0-Z4 | ISO Code: CB430.500D6B.0Z4 | Solid Carbide | TiAlN Coated
