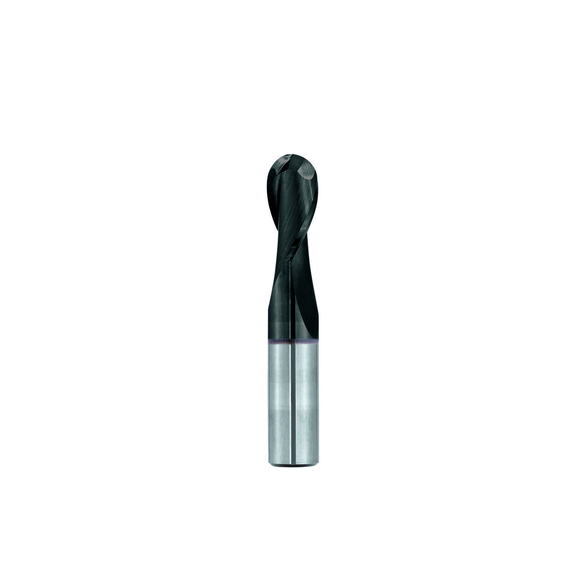

Niagara Cutter 17001310 CB230 Ball End Center Cutting Single End Stub Length End Mill, 3/4 in Dia Cutter, 1 in Length of Cut, 2 Flutes, 3/4 in Dia Shank, 3 in OAL, Uncoated

• Solid carbide provides better rigidity than high speed steel, it is extremely heat resistant and used for high speed applications on cast iron, non-ferrous materials, plastics and other tough-to-machine materials
• Uncoated tools do not feature supportive treatments on the cutting edge, they are used at reduced speeds for general applications on non-ferrous metals
• 90 deg cutting edge
• 2.031 in L minimum clamping
• 30 deg axial rake
• 10 deg radial rake
• Ball nose end mills create contoured surfaces
• Center cutting design allows the end mill to plunge into material like a drill bit while also performing conventional surface milling
• Two flutes offer better chip-carrying capacity than end mills with more flutes, enhancing the tool's ability to remove material
• D - Cylindrical tool shape

For general machining of most materials

Niagara Cutter End Mill | Ball End Center Cutting Single End Stub Length | Series: CB230 | 3/4 in Cutter Dia | 3 in Overall Length | 3/4 in | 1 in Maximum Depth of Cut | 2 Flutes | Spiral Flute | 3/4 in Shank Dia | Right Hand Cutting | 30 deg Helix Angle | Cylindrical Shank | ANSI Code: CB230-0.750-D1-B.0-Z2 | ISO Code: CB230.750D1B.0Z2 | Solid Carbide | Uncoated
