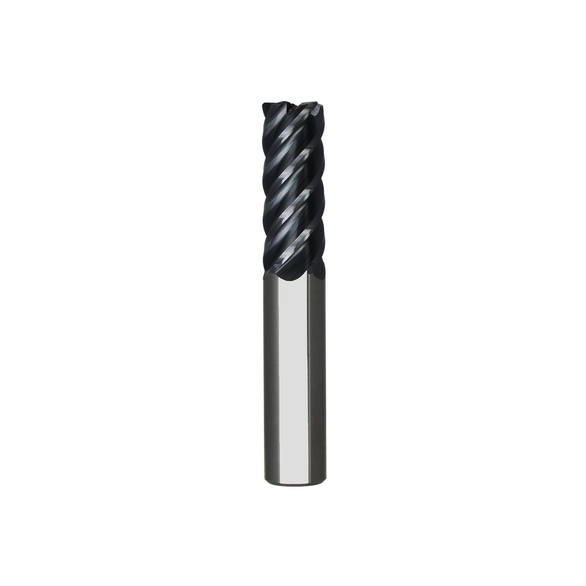

Niagara Cutter 17003467 Elite S545 Center Cutting High Performance Short Length Single End Square End End Mill, 3/4 in Dia Cutter, 1-5/8 in Length of Cut, 5 Flutes, 3/4 in Dia Shank, 4 in OAL, Uncoated
NIACUT 17003467
$214.63
/ EA
Out of Stock
- Mill Diameter: 3/4 in
- Number of Flutes: 5
- Length of Cut: 1-5/8 in
- Material: Solid Carbide
- Finish/Coating: Uncoated
- Shank Diameter: 3/4 in
- Shank Diameter - Decimal: 0.75 in
- Shank Diameter - Fractional: 3/4 in
- Shank Diameter - Metric: 19.05 mm
- Overall Length: 4 in
- Cutting Direction: Right Hand
- Helix Angle: 45 deg
- Cutter Diameter: 3/4 in
- Cutter Diameter - Fractional: 3/4 in
- Diameter: 0.197 in
- Diameter - Decimal: 0.197 in
- Diameter - Fractional: 3/4 in
- Length of Cut - Fractional: 1-5/8 in
- Overall Length - Decimal: 4 in
- Series: S545
- Shank Type: Cylindrical
- Flute Type: Spiral
- Type: Center Cutting;High Performance
- Diameter - Metric: 19.05 mm
- Solid carbide provides better rigidity than high speed steel, it is extremely heat resistant and used for high speed applications on cast iron, non-ferrous materials, plastics and other tough-to-machine materials
- Uncoated tools do not feature supportive treatments on the cutting edge, they are used at reduced speeds for general applications on non-ferrous metals
- 90 deg cutting edge
- 2.031 in L minimum clamping
- 45 deg axial rake
- 10 deg radial rake
- Ideal for peripheral finish milling in steel, stainless steel, titanium and high temperature alloys
- D - Cylindrical tool shape
- Square nose end mills (also called square end) create sharp, unrounded cuts
Peripheral Finish Milling
Niagara Cutter End Mill | Center Cutting High Performance Short Length Single End Square End | Series: Elite S545 | 3/4 in Cutter Dia | 4 in Overall Length | 3/4 in | 1-5/8 in Maximum Depth of Cut | 5 Flutes | Spiral Flute | 3/4 in Shank Dia | Right Hand Cutting | 45 deg Helix Angle | Cylindrical Shank | ANSI Code: S545-0.750-D2-S.0-Z5 | ISO Code: S545.750D2S.0Z5 | Solid Carbide | Uncoated
