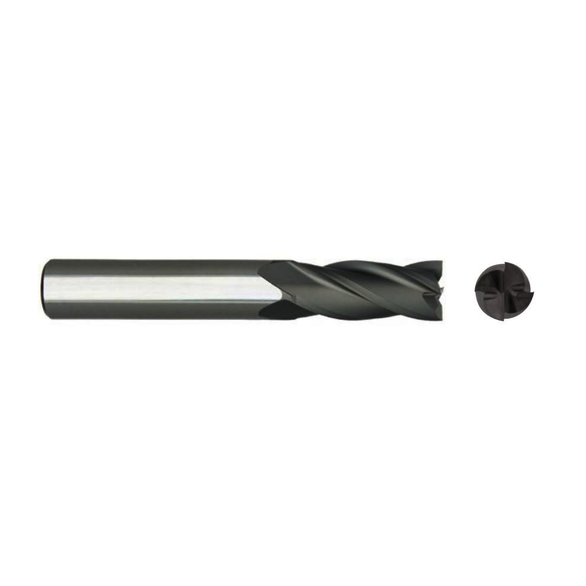

Niagara Cutter 17004988 DIA430 Center Cutting Long Length Single End Square End End Mill, 1/8 in Dia Cutter, 1/2 in Length of Cut, 4 Flutes, 1/8 in Dia Shank, 1-1/2 in OAL, DiamondPlus™ CVD Coated
NIACUT 17004988
$93.80
/ EA
Out of Stock
- Centercutting: Center Cutting
- Mill Diameter: 1/8 in
- Mill Diameter - Decimal: 0.125 in
- Mill Diameter - Fractional: 1/8 in
- Number of Flutes: 4
- Length of Cut: 1/2 in
- Material: Solid Carbide
- Finish/Coating: DiamondPlus™ CVD Coated
- Shank Diameter: 1/8 in
- Shank Diameter - Decimal: 0.125 in
- Shank Diameter - Fractional: 1/8 in
- Single or Double End: Single End
- Overall Length: 1-1/2 in
- Flute Direction: Right Hand
- Cutting Direction: Right Hand
- Helix Angle: 30 deg
- Center Cutting: Center Cutting
- Chipbreaker: No
- Cutter Diameter: 1/8 in
- Extended Reach: No
- Helix Style: Medium
- Length of Cut - Fractional: 1/2 in
- Length Type: Regular
- Mill Diameter Tolerance: -0.001/+0.001 in
- Overall Length - Fractional: 1-1/2 in
- Overall Length Tolerance: +0.060/-0.060 in
- Part Number: N77802
- Series/List: DIA430
- Shank Diameter Tolerance: -0.0001/-0.0004 in
- Shank Type: Cylindrical
- Variable Helix: No
- Flute Type: Spiral
- Cutter Diameter - Fractional: 1/8 in
- Variable Index: No
- Cylindrical Shank
- General purpose geometry designed for carbon fiber, composite applications, graphite and green ceramics
Application:
Seco Tools N77802 1/8 in | 4 | 1/2 in | Solid Carbide | CVDDIA | Square End Mill
