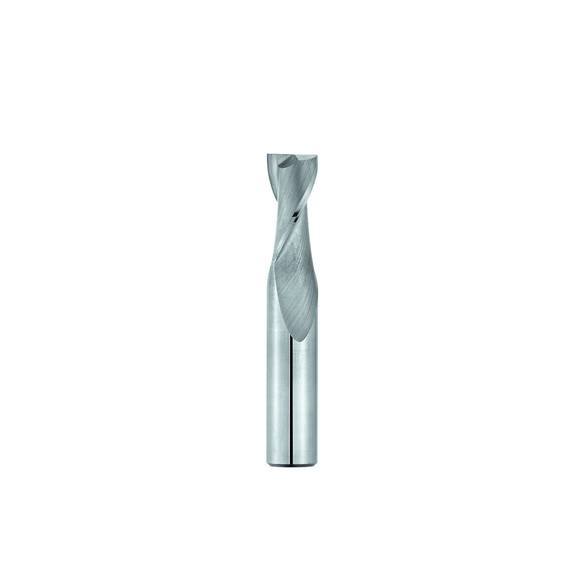

Niagara Cutter 17005233 C230 Center Cutting Short Length Single End Square End End Mill, 3/16 in Dia Cutter, 3/8 in Length of Cut, 2 Flutes, 3/16 in Dia Shank, 2 in OAL, TiAlN Coated
NIACUT 17005233
$13.93
/ EA
Out of Stock
- Mill Diameter: 3/16 in
- Number of Flutes: 2
- Length of Cut: 3/8 in
- Material: Solid Carbide
- Finish/Coating: TiAlN Coated
- Shank Diameter: 3/16 in
- Shank Diameter - Decimal: 0.1875 in
- Shank Diameter - Fractional: 3/16 in
- Shank Diameter - Metric: 4.762 mm
- Overall Length: 2 in
- Cutting Direction: Right Hand
- Helix Angle: 30 deg
- Cutter Diameter: 3/16 in
- Diameter: 3/16 in
- Diameter - Fractional: 3/16 in
- Finish: TiAlN Coated
- Length of Cut - Fractional: 3/8 in
- Overall Length - Decimal: 2 in
- Series: C230
- Shank Type: Cylindrical
- Type: Center Cutting;General Purpose
- Flute Type: Spiral
- Cutter Diameter - Fractional: 3/16 in
- Diameter - Decimal: 0.1875 in
- Diameter - Metric: 4.762 mm
- Solid carbide provides better rigidity than high speed steel, it is extremely heat resistant and used for high speed applications on cast iron, non-ferrous materials, plastics and other tough-to-machine materials
- Titanium aluminum nitride (TiAlN) has a higher hardness and oxidation temperature versus TiN and TiCN, as a result, it is particularly advantageous for higher speed operations in a variety of steel machining applications
- 90 deg cutting edge
- 30 deg axial rake
- 10 deg radial rake
- D - Cylindrical tool shape
For general machining of most materials
Niagara Cutter End Mill | Center Cutting Short Length Single End Square End | Series: C230 | 3/16 in Cutter Dia | 2 in Overall Length | 3/16 in | 3/8 in Maximum Depth of Cut | 2 Flutes | Spiral Flute | 3/16 in Shank Dia | Right Hand Cutting | 30 deg Helix Angle | Cylindrical Shank | ANSI Code: C230-0.188-D2-S.0-Z2 | ISO Code: C230.188D2S.0Z2 | Solid Carbide | TiAlN Coated
