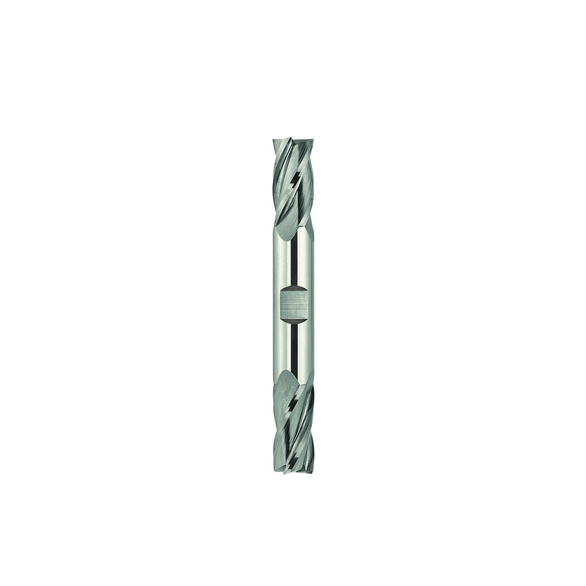

Niagara Cutter 17005413 CD430 Center Cutting Double End Medium Length Square End End Mill, 7/32 in Dia Cutter, 9/16 in Length of Cut, 4 Flutes, 3/8 in Dia Shank, 3-3/8 in OAL, Uncoated
NIACUT 17005413
$48.80
/ EA
Out of Stock
- Mill Diameter: 7/32 in
- Number of Flutes: 4
- Length of Cut: 9/16 in
- Material: Solid Carbide
- Finish/Coating: Uncoated
- Shank Diameter: 3/8 in
- Shank Diameter - Decimal: 0.375 in
- Shank Diameter - Fractional: 3/8 in
- Shank Diameter - Metric: 9.525 mm
- Overall Length: 3-3/8 in
- Cutting Direction: Right Hand
- Helix Angle: 30 deg
- Cutter Diameter: 7/32 in
- Cutter Diameter - Fractional: 7/32 in
- Length of Cut - Fractional: 9/16 in
- Length Type: Medium Length
- Overall Length - Fractional: 3-3/8 in
- Series: CD430
- Shank Type: Weldon Flat
- Type: Center Cutting;General Purpose
- Flute Type: Spiral
- Cutter Diameter - Decimal: 0.21875 in
- Cutter Diameter - Metric: 5.556 mm
- Finish: Uncoated
- Solid carbide provides better rigidity than high speed steel, it is extremely heat resistant and used for high speed applications on cast iron, non-ferrous materials, plastics and other tough-to-machine materials
- Uncoated tools do not feature supportive treatments on the cutting edge, they are used at reduced speeds for general applications on non-ferrous metals
- 90 deg cutting edge
- 30 deg axial rake
- 10 deg radial rake
- 15 deg neck
- F - Step tool shape
For general machining of most materials
Niagara Cutter End Mill | Center Cutting Double End Medium Length Square End | Series: CD430 | 7/32 in Cutter Dia | 3-3/8 in Overall Length | 3/8 in | 9/16 in Maximum Depth of Cut | 4 Flutes | Spiral Flute | 3/8 in Shank Dia | Right Hand Cutting | 30 deg Helix Angle | Weldon Flat Shank | ANSI Code: CD430-0.219-XF3-S.3-Z4 | ISO Code: CD430.219XF3S.3Z4 | Solid Carbide | Uncoated
