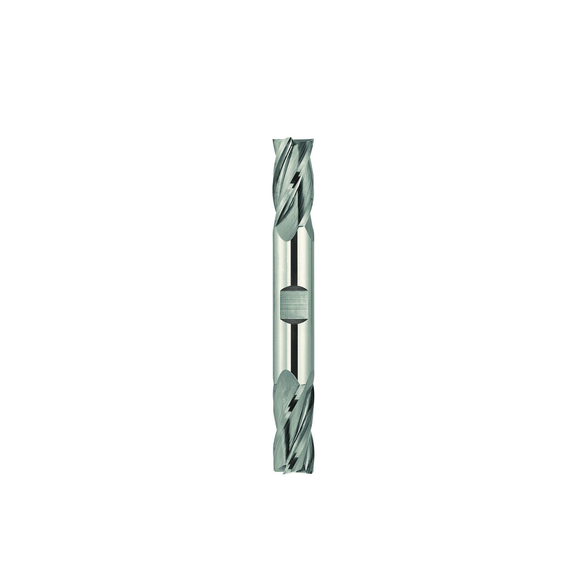

Niagara Cutter 17005439 CD430 Center Cutting Double End Short Length Square End End Mill, 11/32 in Dia Cutter, 3/4 in Length of Cut, 4 Flutes, 3/8 in Dia Shank, 3-1/2 in OAL, TiAlN Coated
NIACUT 17005439
$64.74
/ EA
Out of Stock
- Mill Diameter: 11/32 in
- Number of Flutes: 4
- Length of Cut: 3/4 in
- Material: Solid Carbide
- Finish/Coating: TiAlN Coated
- Shank Diameter: 3/8 in
- Shank Diameter - Decimal: 0.375 in
- Shank Diameter - Fractional: 3/8 in
- Shank Diameter - Metric: 9.525 mm
- Overall Length: 3-1/2 in
- Cutting Direction: Right Hand
- Helix Angle: 30 deg
- Cutter Diameter: 11/32 in
- Cutter Diameter - Decimal: 0.34375 in
- Cutter Diameter - Fractional: 11/32 in
- Cutter Diameter - Metric: 8.731 mm
- Finish: TiAlN Coated
- Length of Cut - Fractional: 3/4 in
- Length Type: Short Length
- Overall Length - Fractional: 3-1/2 in
- Series: CD430
- Shank Type: Weldon Flat
- Type: Center Cutting;General Purpose
- Flute Type: Spiral
- Solid carbide provides better rigidity than high speed steel, it is extremely heat resistant and used for high speed applications on cast iron, non-ferrous materials, plastics and other tough-to-machine materials
- Titanium aluminum nitride (TiAlN) has a higher hardness and oxidation temperature versus TiN and TiCN, as a result, it is particularly advantageous for higher speed operations in a variety of steel machining applications
- 90 deg cutting edge
- 30 deg axial rake
- 10 deg radial rake
- 10 deg neck
- F - Step tool shape
For general machining of most materials
Niagara Cutter End Mill | Center Cutting Double End Short Length Square End | Series: CD430 | 11/32 in Cutter Dia | 3-1/2 in Overall Length | 3/8 in | 3/4 in Maximum Depth of Cut | 4 Flutes | Spiral Flute | 3/8 in Shank Dia | Right Hand Cutting | 30 deg Helix Angle | Weldon Flat Shank | ANSI Code: CD430-0.344-XF2-S.3-Z4 | ISO Code: CD430.344XF2S.3Z4 | Solid Carbide | TiAlN Coated
