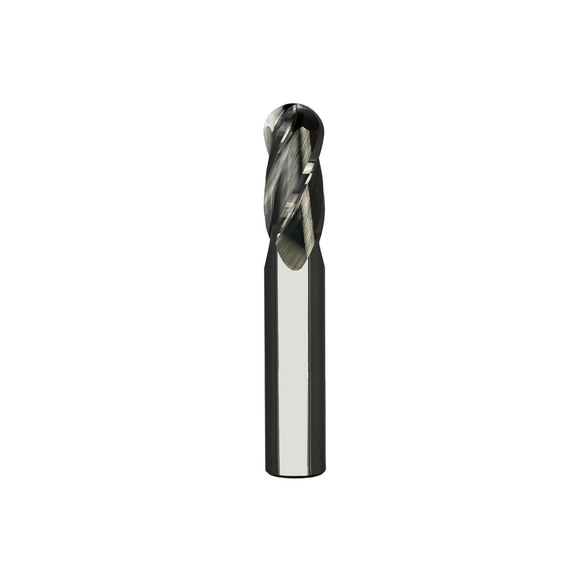

Niagara Cutter 17006157 CB430 Ball End Center Cutting Short Length Single End End Mill, 3/4 in Dia Cutter, 1-1/2 in Length of Cut, 4 Flutes, 3/4 in Dia Shank, 4 in OAL, TiAlN Coated

• Solid carbide provides better rigidity than high speed steel, it is extremely heat resistant and used for high speed applications on cast iron, non-ferrous materials, plastics and other tough-to-machine materials
• Titanium aluminum nitride (TiAlN) has a higher hardness and oxidation temperature versus TiN and TiCN, as a result, it is particularly advantageous for higher speed operations in a variety of steel machining applications
• 90 deg cutting edge
• 2.031 in L minimum clamping
• 30 deg axial rake
• 10 deg radial rake
• Ball nose end mills create contoured surfaces
• Center cutting design allows the end mill to plunge into material like a drill bit while also performing conventional surface milling
• D - Cylindrical tool shape

For general machining of most materials

Niagara Cutter End Mill | Ball End Center Cutting Short Length Single End | Series: CB430 | 3/4 in Cutter Dia | 4 in Overall Length | 3/4 in | 1-1/2 in Maximum Depth of Cut | 4 Flutes | Spiral Flute | 3/4 in Shank Dia | Right Hand Cutting | 30 deg Helix Angle | Cylindrical Shank | ANSI Code: CB430-0.750-D2-B.0-Z4 | ISO Code: CB430.750D2B.0Z4 | Solid Carbide | TiAlN Coated
