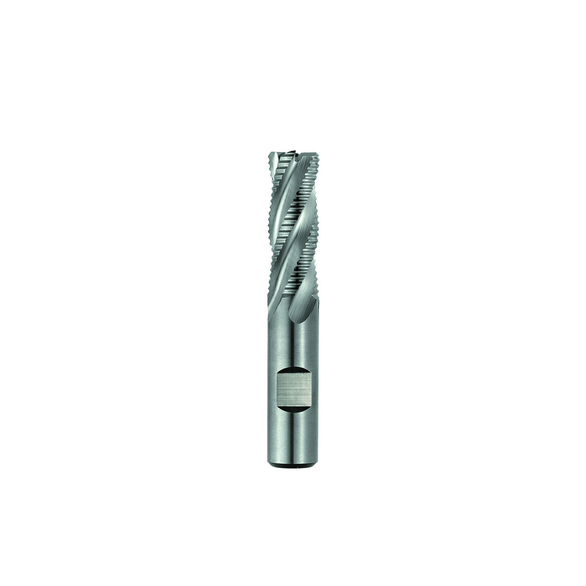

Niagara Cutter 17010618 REC448 Center Cutting Single End Stub Length End Mill, 3/8 in Dia Cutter, 0.025 in Corner Radius, 1/2 in Length of Cut, 4 Flutes, 3/8 in Dia Shank, 2-1/4 in OAL, TiCN Coated
NIACUT 17010618
$42.93
/ EA
Out of Stock
- Mill Diameter: 3/8 in
- Mill Diameter - Decimal: 0.375 in
- Mill Diameter - Fractional: 3/8 in
- Mill Diameter - Metric: 9.525 mm
- Length of Cut: 1/2 in
- Shank Diameter: 3/8 in
- Shank Diameter - Decimal: 0.375 in
- Shank Diameter - Fractional: 3/8 in
- Shank Diameter - Metric: 9.525 mm
- Material: HSS-Co8
- Finish/Coating: TiCN
- Overall Length: 2-1/4 in
- Centercutting: Center Cutting
- Helix Angle: 30 deg
- Chamfer Width: 0.025 in
- Chamfer Width - Decimal: 0.025 in
- Chipbreaker: No
- Corner Radius: 0.025 in
- Cutter Diameter: 3/8 in
- Cutter Diameter - Fractional: 3/8 in
- Cutting Direction: Right Hand
- Diameter: 0.197 in
- Diameter - Decimal: 0.197 in
- Flute Direction: Right Hand
- Length of Cut - Decimal: 0.5 in
- Length of Cut - Fractional: 1/2 in
- Length of Cut - Metric: 12.7 mm
- Overall Length - Decimal: 2.25 in
- Overall Length - Fractional: 2-1/4 in
- Overall Length - Metric: 57.15 mm
- Shank Type: Weldon Flat
- Single or Double End: Single End
- Variable Helix: No
- Flute Type: Spiral
- Number of Flutes: 4
- Variable Index: No
General Purpose, Profiling and Slotting
Niagara Cutter End Mill | Center Cutting Single End Stub Length | Series: REC448 | 3/8 in Cutter Dia | 0.025 in Corner Radius | 2-1/4 in Overall Length | 1/2 in Maximum Depth of Cut | 4 Flutes | Spiral Flute | 3/8 in Shank Dia | Right Hand Cutting | 30 deg Helix Angle | Weldon Flat Shank | ANSI Code: REC448-0.375-D1-C025.3-Z4 | ISO Code: REC448.375D1C025.3Z4 | M42 HSS-Co 8 | TiCN Coated
