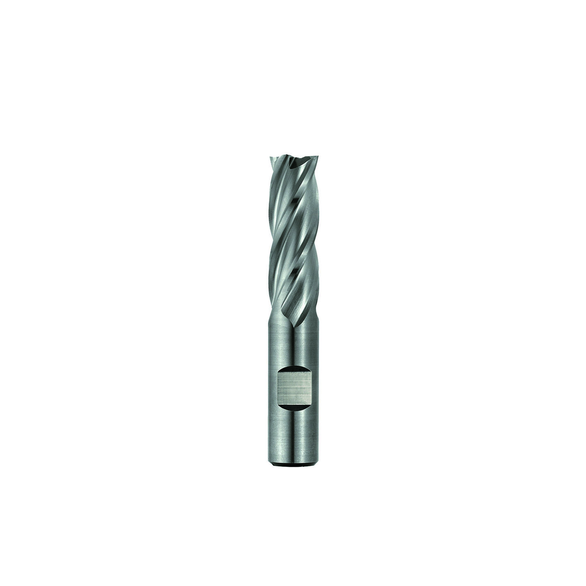

Niagara Cutter 17011709 SPC408 Center Cutting Extended Reach Single End Square End End Mill, 1/4 in Dia Cutter, 1-3/4 in Length of Cut, 4 Flutes, 3/8 in Dia Shank, 3-9/16 in OAL, Uncoated
NIACUT 17011709
$52.92
/ EA
Out of Stock
- Mill Diameter: 1/4 in
- Number of Flutes: 4
- Length of Cut: 1-3/4 in
- Material: M42 8% Cobalt
- Finish/Coating: Uncoated
- Shank Diameter: 3/8 in
- Shank Diameter - Decimal: 0.375 in
- Shank Diameter - Fractional: 3/8 in
- Shank Diameter - Metric: 9.525 mm
- Overall Length: 3-9/16 in
- Cutting Direction: Right Hand
- Helix Angle: 30 deg
- Arbor/Shank Size: 3/8 in
- Capacity: 18 mm
- Cutter Diameter: 1/4 in
- Cutter Diameter - Decimal: 0.25 in
- Cutter Diameter - Metric: 6.35 mm
- Length of Cut - Fractional: 1-3/4 in
- Length Type: Extended Reach Length
- Overall Length - Fractional: 3-9/16 in
- Series: SPC408
- Type: Center Cutting
- Flute Type: Spiral
- Cutter Diameter - Fractional: 1/4 in
- Shank Type: Weldon Flat
- Finish: Uncoated
- Cobalt is harder than high speed steel and provides better wear resistance, it is commonly used on high tensile alloys
- Uncoated tools do not feature supportive treatments on the cutting edge, they are used at reduced speeds for general applications on non-ferrous metals
- 90 deg cutting edge
- 1.562 in L minimum clamping
- 30 deg axial rake
- 10 deg radial rake
- Square nose end mills create sharp, unrounded cuts
- Center cutting design allows the end mill to plunge into material like a drill bit while also performing conventional surface milling
- F - Step tool shape
For profiling and slotting in all materials
Niagara Cutter End Mill | Center Cutting Extended Reach Single End Square End | Series: SPC408 | 1/4 in Cutter Dia | 3-9/16 in Overall Length | 3/8 in | 1-3/4 in Maximum Depth of Cut | 4 Flutes | Spiral Flute | 3/8 in Shank Dia | Right Hand Cutting | 30 deg Helix Angle | Weldon Flat Shank | ANSI Code: SPC408-0.250-F7-S.3-Z4 | ISO Code: SPC408.250F7S.3Z4 | M42 8% Cobalt | Uncoated
