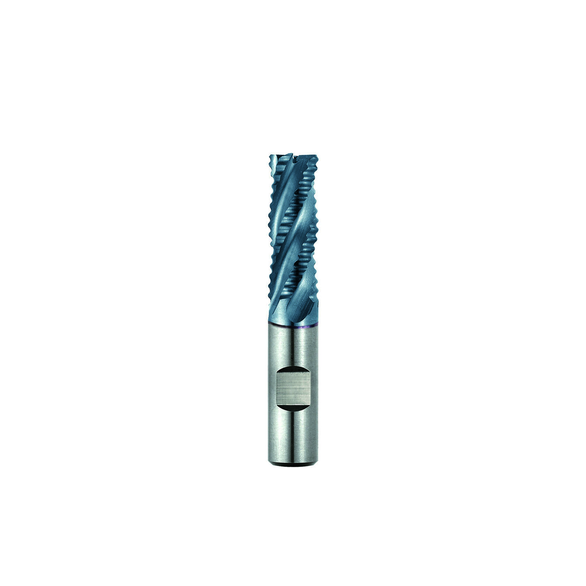

Niagara Cutter 17013493 REM710 Long Length Non-Center Cutting Single End End Mill, 1/2 in Dia Cutter, 0.025 in Corner Radius, 2 in Length of Cut, 4 Flutes, 1/2 in Dia Shank, 4 in OAL, TiCN Coated
NIACUT 17013493
$83.06
/ EA
Out of Stock
- Mill Diameter: 1/2 in
- Mill Diameter - Decimal: 0.5 in
- Mill Diameter - Fractional: 1/2 in
- Mill Diameter - Metric: 12.7 mm
- Pitch: Coarse
- Length of Cut: 2 in
- Shank Diameter: 1/2 in
- Shank Diameter - Decimal: 0.5 in
- Shank Diameter - Fractional: 1/2 in
- Shank Diameter - Metric: 12.7 mm
- End Type: Square End
- Material: HSS-Co8
- Finish/Coating: TiCN
- Overall Length: 4 in
- Centercutting: No Center Cutting
- Helix Angle: 30 deg
- Chamfer Width: 0.025 in
- Chamfer Width - Decimal: 0.025 in
- Chipbreaker: No
- Corner Radius: 0.025 in
- Cutter Diameter: 1/2 in
- Cutting Direction: Right Hand
- Flute Direction: Right Hand
- Flute Type: Spiral
- Length of Cut - Decimal: 2 in
- Length of Cut - Metric: 50.8 mm
- Overall Length - Decimal: 4 in
- Overall Length - Metric: 101.6 mm
- Shank Type: Weldon Flat
- Single or Double End: Single End
- Variable Index: No
- Cutter Diameter - Fractional: 1/2 in
- Number of Flutes: 4
- Variable Helix: No
General Purpose, Profiling and Slotting
Niagara Cutter End Mill | Long Length Non-Center Cutting Single End | Series: REM710 | 1/2 in Cutter Dia | 0.025 in Corner Radius | 4 in Overall Length | 2 in Maximum Depth of Cut | 4 Flutes | Spiral Flute | 1/2 in Shank Dia | Right Hand Cutting | 30 deg Helix Angle | Weldon Flat Shank | ANSI Code: REM710-0.500-D4-C025.3-Z4 | ISO Code: REM710.500D4C025.3Z4 | M42 HSS-Co 8 | TiCN Coated
